View larger
Images are for illustrative purposes only. Please refer to data sheet for details

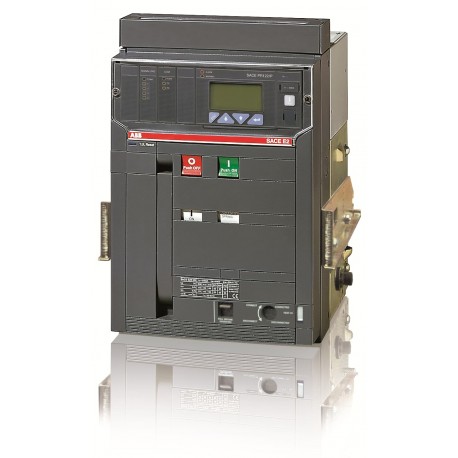

1SDA056100R1 ABB E2L1600 PR122/P LSI 3P W MP
1SDA056100R1
056100
ABB
1 Pcs.
E2L1600 PR122/P LSI 3P W MP
E2L 1600 PR122/P-LSI In=1600A 3p W MP
Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | 5d0e34ab-8dfe-41ed-8dfc-b3d1b9ac8389 Italy |
| Simplified SCIP | 7f138cbd-66fb-4975-8350-d19d6647a5dc Poland |
| fff2dc21-4aaa-4540-9b97-202e1636bfcd Bulgaria | |
| d7c0630b-053b-4914-aadb-207e23ad6cac Germany | |
| 3e78e3ea-2f72-447b-99cd-93b4e1e71474 Sweden | |
| f7a14644-ecfe-4c64-8d77-ce6b888920c4 France | |
| 5104de47-963e-4c04-829d-c88da31ee5cc France | |
| 8ba62336-5620-4d0e-a90d-8d4054773ca5 Hungary | |
| 716518fb-e1e1-4b29-bd5f-c9b94876d02a Belgium | |
| d3ed5fab-a478-4aa1-afcd-312c2480037c Germany | |
| d20fd06b-7d7a-4d72-966a-e532848166bb Greece | |
| 45022978-3e97-4741-be70-4c75a5686f8f Germany | |
| 2d6c75a8-cce0-4330-bb58-23ddd1b335ab Spain | |
| 165151cc-848a-4340-b6e0-df3c5c7cdb01 Estonia | |
| 80e8d6f9-a684-4e5c-8a05-835c36b0882c Sweden | |
| 288529e8-2746-483a-9611-73fd3689b5f7 Poland | |
| 97f3f3c4-623a-4f2f-b32f-8140b4f02b4a Norway | |
| 2cd4b49b-1b7b-41ea-8642-40ef96e13642 Finland | |
| d34c018c-dddf-418f-972b-a36cf1ff80ba Denmark | |
| ca856109-b21f-4a5b-8824-da2d4d7e1d9b Portugal | |
| 34bcc813-3bdf-4804-9534-d3a4b314fa0e Hungary | |
| a6e2a2e6-26d3-44c2-bc03-7636c28165d3 Germany | |
| 71e6f4b3-8cfe-429b-9a84-13982d32258c Croatia | |
| eacf0228-b7a7-4efc-8645-d66825c36323 Germany | |
| 5f5f91ff-7635-4d26-ac41-5a287ab37829 Belgium | |
| c5ca7847-8271-4f57-b0ec-287df26daaaf Czech Republic | |
| 95c91afb-b594-4928-8023-b3a5110d5188 Poland | |
| c7d2f9df-eaaf-4d7d-8621-fbaa86306d33 Netherlands | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644574406 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 324 mm |
| Product Net Height | 461 mm |
| Product Net Depth / Length | 396.5 mm |
| Product Net Weight | 49 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 59 kg |
| Package Level 1 EAN | 8015644574406 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 3000 cycle |
| Ue = 500 ... 690 V 2000 cycle | |
| 20 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 265 W |
| Rated Current (In) | 1600 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 1600 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 130 kA |
| (230 V AC) 130 kA | |
| (380 V AC) 130 kA | |
| (400 V AC) 130 kA | |
| (415 V AC) 130 kA | |
| (440 V AC) 110 kA | |
| (500 V AC) 65 kA | |
| (660 V AC) 65 kA | |
| (690 V AC) 65 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 10 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 130 kA |
| (230 V AC) 130 kA | |
| (380 V AC) 130 kA | |
| (400 V AC) 130 kA | |
| (415 V AC) 130 kA | |
| (440 V AC) 110 kA | |
| (500 V AC) 85 kA | |
| (660 V AC) 85 kA | |
| (690 V AC) 85 kA | |
| Rated Uninterrupted Current (Iu) | 1600 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR122/P-LSI |
| Release Type | EL |
| Short-Circuit Performance Level | L |
| Standards | IEC |
| Sub-type | E2 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0014 |
| Instructions and Manuals | 1SDH000460R0002 |
| 1SDH000460R0102 | |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
