View larger
Images are for illustrative purposes only. Please refer to data sheet for details

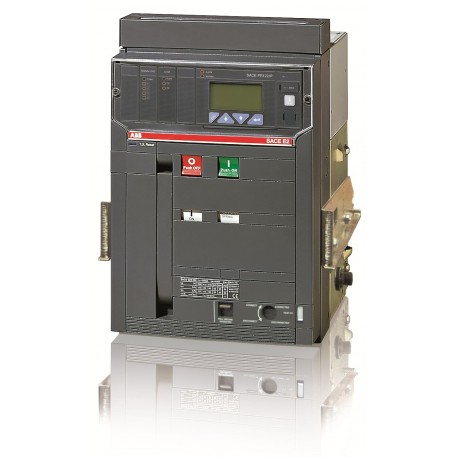

1SDA056069R1 ABB E2L1250 PR122/P LSIG 3P W MP
1SDA056069R1
056069
ABB
1 Pcs.
E2L1250 PR122/P LSIG 3P W MP
E2L 1250 PR122/P-LSIG In=1250A 3p W MP
Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | 2255c6dc-2be6-415f-aa8d-44d539392e4e Italy |
| Simplified SCIP | b91daccf-5b02-47c5-9ba4-ed2fe4ad8fd3 Bulgaria |
| 2aef16e1-eaa6-4252-963e-a45db2482d33 Germany | |
| bd423a27-00b7-452b-ad80-5492b289ea38 Finland | |
| 55cf7032-9236-490f-a421-427d28a8c1d4 Norway | |
| b71abbad-a218-4ee7-9795-2fa5ece4806d Poland | |
| f50c9f91-b985-41b7-b1dc-46d27ea005c9 Germany | |
| a6c7a341-836b-4452-a86d-634b58ae838b Denmark | |
| 909cc0c3-1e4b-4f7e-a4ae-24783d4ef694 Croatia | |
| 2db441c4-9ea1-40f6-ae80-2053591c4ad2 Hungary | |
| 78862218-6876-428a-a8ca-af5cdf2dc63f Germany | |
| a25e5cc5-5703-47cf-8a3c-ce4f67667a41 Germany | |
| 7515543f-5f56-4f0a-80bb-c65ff4bdc42b France | |
| 2579172d-f565-4875-96c8-7667d4331423 Hungary | |
| 5e4091b2-cc3a-4571-850c-4b7c9e92a7b5 France | |
| d31b8a26-a659-4fba-8d4c-9cb9548f9dae Sweden | |
| e70ccd51-57e6-484e-9590-8458d3f79edd Poland | |
| b15f6160-b58d-4e62-86ca-3a0824b8a09f Estonia | |
| ef6bb1b3-5dbe-4a83-b33c-043b931f416e Belgium | |
| adb91545-a285-4851-9474-60e0a9e5d586 Portugal | |
| f304a883-f5d3-4671-855f-7d3eec2a25f6 Netherlands | |
| 63b25c01-1a8b-4858-a5f2-8519dcafef4b Poland | |
| af7943f9-1d74-4f0c-a9e9-bf46bafa41c4 Czech Republic | |
| da2673eb-f123-46ea-8d1d-6eca9ffe3796 Germany | |
| 99853792-1d0a-4cdf-869e-0c001fe0c71f Belgium | |
| 9f4a1ab3-e190-418e-98bd-e7f00908b5c9 Greece | |
| 3f01d258-f341-495b-a2ab-265b61759f37 Sweden | |
| d6d7436b-c639-426a-acf5-aacdb28dc668 Spain | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644574093 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 324 mm |
| Product Net Height | 461 mm |
| Product Net Depth / Length | 396.5 mm |
| Product Net Weight | 49 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 59 kg |
| Package Level 1 EAN | 8015644574093 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 4000 cycle |
| Ue = 500 ... 690 V 3000 cycle | |
| 20 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 165 W |
| Rated Current (In) | 1250 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 1250 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 130 kA |
| (230 V AC) 130 kA | |
| (380 V AC) 130 kA | |
| (400 V AC) 130 kA | |
| (415 V AC) 130 kA | |
| (440 V AC) 110 kA | |
| (500 V AC) 65 kA | |
| (660 V AC) 65 kA | |
| (690 V AC) 65 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 10 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 130 kA |
| (230 V AC) 130 kA | |
| (380 V AC) 130 kA | |
| (400 V AC) 130 kA | |
| (415 V AC) 130 kA | |
| (440 V AC) 110 kA | |
| (500 V AC) 85 kA | |
| (660 V AC) 85 kA | |
| (690 V AC) 85 kA | |
| Rated Uninterrupted Current (Iu) | 1250 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR122/P-LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | L |
| Standards | IEC |
| Sub-type | E2 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0014 |
| Instructions and Manuals | 1SDH000460R0002 |
| 1SDH000460R0102 | |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
