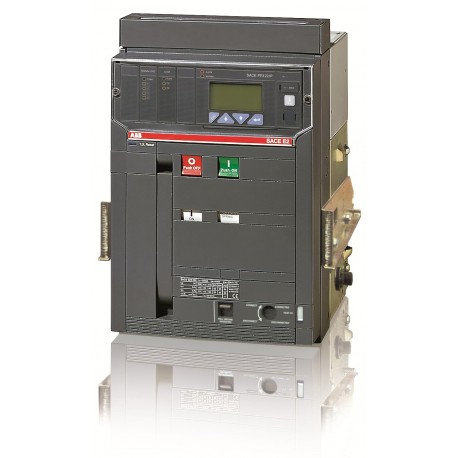

ABB 1SDA056007R1 1SDA056007R1 ABB E2S1600 PR123/P LSIG 3P W MP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA056007R1 ABB E2S1600 PR123/P LSIG 3P W MP

1SDA056007R1

056007

ABB

1 Pcs.

E2S1600 PR123/P LSIG 3P W MP E2S 1600 PR123/P-LSIG In=1600A 3p W MP

Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)Document availability on demand
SCIP44da0a17-ba8c-408f-bb9b-688c743006d8 Italy
Simplified SCIP09a66332-4773-4e6c-9fd0-bc73de82bfae Netherlands
74b536c2-a0d0-463c-90b1-d27cd0688cf1 Poland
d5677378-42bd-44f3-878c-9056127499e1 Sweden
c313906d-3ffc-4a1f-8acb-94a9231e37db Germany
b393cf17-0394-4bf1-8d24-f3e9f8b58454 Hungary
9fc7637e-0d12-4f0c-a37f-2d0b9e8bbb54 France
94ed407a-0550-4843-9117-4ecf7f894dfc Germany
77044005-f031-445f-9dd6-7d61dc44bcdf Belgium
3a57b1da-0e32-48e2-8d65-5961b62fe0ab Spain
2f0fdc9f-74d4-4bae-83bb-ec46d48ddfa6 Poland
37d9c786-70d5-4729-87cb-49ca6a93a67b Poland
1143456e-4c42-4efa-9219-95122b23eff2 Norway
5d203e04-67fa-4667-8f38-642741b80575 Germany
01d06742-025f-494f-81d9-1a0e7b69819a France
58f320ff-d568-4870-a638-c3e4fceac757 Sweden
b5e62202-1c8b-427f-9fdb-f58adda9b153 Finland
6c66007a-c4e5-4868-b8cd-3ffd90a84664 Germany
27aea6d6-3197-4796-ab00-89ae5842b480 Germany
08800597-4369-4bf0-8be6-5b280884245b Belgium
ab9ed683-8926-49db-80bc-69e77f3d43a7 Portugal
714f15ea-4e18-4522-b9e2-fb16e0900921 Denmark
0f8f3bc1-7f2f-493d-88bf-e468e4190a51 Bulgaria
a96c5496-6cd9-4bc5-956f-02cc22e75689 Greece
f4b581a8-a33d-418c-b348-6813bf8ad927 Croatia
eed6e0c8-d671-4dad-a979-8c8f2f061144 Czech Republic
Environmental
Environmental Information9AKK10103A6076
Ordering
EAN8015644573478
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width324 mm
Product Net Height461 mm
Product Net Depth / Length396.5 mm
Product Net Weight49 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width515 mm
Package Level 1 Height600 mm
Package Level 1 Depth / Length515 mm
Package Level 1 Gross Weight59 kg
Package Level 1 EAN8015644573478
Additional Information
Product Main TypeSACE Emax
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionW
Technical
Current TypeAC
Electrical DurabilityUe =< 440 V 12000 cycle
Ue = 500 ... 690 V 10000 cycle
30 cycles per hour
Mechanical Durability25000 cycle
60 cycles per hour
Number of Poles3P
Power Loss215 W
Rated Current (In)1600 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current (Ie)1600 A
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 85 kA
(400 V AC) 85 kA
(415 V AC) 85 kA
(440 V AC) 85 kA
(500 V AC) 65 kA
(660 V AC) 65 kA
(690 V AC) 65 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 65 kA
for 3 s 50 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 85 kA
(400 V AC) 85 kA
(415 V AC) 85 kA
(440 V AC) 85 kA
(500 V AC) 65 kA
(660 V AC) 65 kA
(690 V AC) 65 kA
Rated Uninterrupted Current (Iu)1600 A
Rated Voltage (Ur)690 V
ReleasePR123/P-LSIG
Release TypeEL
Short-Circuit Performance LevelS
StandardsIEC
Sub-typeE2
Terminal Connection TypeWithdrawable Circuit-Breakers
Certificates and Declarations
Data Sheet, Technical Information1SDC200006D0209
Declaration of Conformity - CE1SDL000165R0014
Instructions and Manuals1SDH000460R0002
1SDH000460R0102
External Classifications and Standards
Object Classification CodeQ
UNSPSC39120000
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
