ABB 1SDA055941R1 1SDA055941R1 ABB E2N2000 PR122/P LSIG 3P W MP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA055941R1 ABB E2N2000 PR122/P LSIG 3P W MP

1SDA055941R1

055941

ABB

1 Pcs.

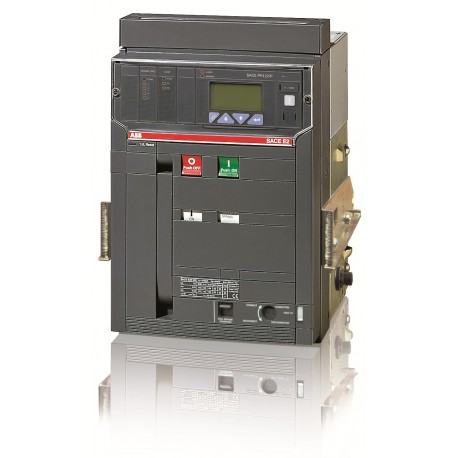

E2N2000 PR122/P LSIG 3P W MP SACE EMAX MOVING PART FOR CIRCUIT-BREAKER E2N 2000A THRE-POLE OVERCURRENT RELEASE PR122/P-LSIG R2000 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED E2N 2000 PR122/P-LSIG In=2000A 3p W MP

Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)Document availability on demand
SCIPd3b0a43c-5e99-4011-85e3-ff6bd75a49f9 Italy
Simplified SCIPcbf6d68c-1178-4b84-a2fb-befe21597c7b Germany
23ca2657-ed2f-4f94-8e3a-f34c7d7d6422 Germany
91fe83bd-7a6f-4fd6-94dd-2f751970c3cc Bulgaria
46f01fb4-b5d7-4848-9e89-38e674ec6a8e Poland
2840e52c-3302-4e31-a34d-fa841c2a9f77 Czech Republic
e6c76523-3467-4bd4-9d48-ce18e4779895 Poland
55fc4325-1d3c-492e-8b78-d458054bb630 Netherlands
4840ea95-5002-4cc4-82f8-cd593fcba6bd Germany
191826b1-c2ca-4a50-bdfb-c4a813763cf9 Croatia
662d8cc1-203f-4e80-892e-d02ce6eea511 Hungary
e8a7bbdc-6896-490b-b10b-2fa054cedba7 Poland
73452080-39e6-480e-8928-e2eeada1f405 Finland
ff1121ca-f063-4d62-aa91-e0caac952614 Norway
d2fa5c9a-fef1-464e-887f-fe96ec4c4873 Denmark
7d064ee9-bf65-4c9c-a708-a346df89299e Belgium
c71b876a-358a-4203-bd20-560d5a127a60 Germany
dbb97d5c-6110-4825-a17d-371ba6ac29a9 Belgium
8218693e-557a-4cd2-b203-a6501733bede Sweden
9241d33b-1d73-4462-a6e3-1b5affd99e0a Hungary
a26f7540-a2bb-4419-a38f-130162a55f2e France
bf183e3d-26fd-4e9b-b106-5eefca3fbb74 Germany
476d5d13-392d-4a61-8114-8f49396abb50 France
59cfe0b9-c274-4bec-8e0e-cf9ebac74d3c Sweden
2928ba9f-fdcd-417d-a310-7b9129d09986 Estonia
e65eb00b-2f88-4e8b-8f26-2c9d16b20786 Spain
1b5ca7e1-163b-471c-8869-e050e0e27753 Greece
3872fca4-d023-4c63-b785-1c141b459820 Portugal
Environmental
Environmental Information9AKK10103A6076
Ordering
EAN8015644572815
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width324 mm
Product Net Height461 mm
Product Net Depth / Length396.5 mm
Product Net Weight49 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width515 mm
Package Level 1 Height600 mm
Package Level 1 Depth / Length515 mm
Package Level 1 Gross Weight59 kg
Package Level 1 EAN8015644572815
Additional Information
Product Main TypeSACE Emax
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionW
Technical
Current TypeAC
Electrical DurabilityUe =< 440 V 10000 cycle
Ue = 500 ... 690 V 8000 cycle
30 cycles per hour
Mechanical Durability25000 cycle
60 cycles per hour
Number of Poles3P
Power Loss330 W
Rated Current (In)2000 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current (Ie)2000 A
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 65 kA
(230 V AC) 65 kA
(380 V AC) 65 kA
(400 V AC) 65 kA
(415 V AC) 65 kA
(440 V AC) 65 kA
(500 V AC) 55 kA
(660 V AC) 55 kA
(690 V AC) 55 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 55 kA
for 3 s 42 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 65 kA
(230 V AC) 65 kA
(380 V AC) 65 kA
(400 V AC) 65 kA
(415 V AC) 65 kA
(440 V AC) 65 kA
(500 V AC) 55 kA
(660 V AC) 55 kA
(690 V AC) 55 kA
Rated Uninterrupted Current (Iu)2000 A
Rated Voltage (Ur)690 V
ReleasePR122/P-LSIG
Release TypeEL
Short-Circuit Performance LevelN
StandardsIEC
Sub-typeE2
Terminal Connection TypeWithdrawable Circuit-Breakers
Certificates and Declarations
Data Sheet, Technical Information1SDC200006D0209
Declaration of Conformity - CE1SDL000165R0014
Instructions and Manuals1SDH000460R0002
1SDH000460R0102
External Classifications and Standards
Object Classification CodeQ
UNSPSC39120000
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
