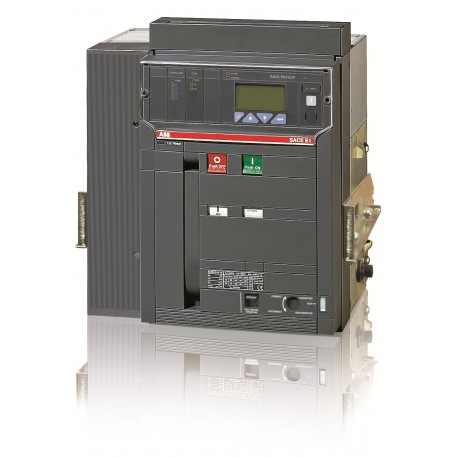

1SDA055789R1 ABB E1N1600 PR122/P LSIG 4P W MP
1SDA055789R1
055789
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb 1SDA055789R1 E1N1600 PR122/P LSIG 4P W MP is a heavy-duty air circuit breaker engineered for reliable isolation and fault protection in large-scale industrial electrical systems. Such devices are deployed within main switchgear assemblies to manage massive electrical loads and ensure personnel safety during maintenance. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- SCIP: 37865dd0-7e7f-4509-91ab-571ada2791d5 Italy
- Simplified SCIP: 97d32e87-a42c-41fc-8894-2402dfd2fc54 Germany
- Environmental Information: 9AKK10103A6076
- EAN: 8015644571290
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 414 mm
- Product Net Height: 461 mm
- Product Net Depth / Length: 396.5 mm
- Product Net Weight: 54 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 515 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | 37865dd0-7e7f-4509-91ab-571ada2791d5 Italy |
| Simplified SCIP | 97d32e87-a42c-41fc-8894-2402dfd2fc54 Germany |
| b1add0f9-a741-4487-8378-f88455d5442a Germany | |
| d761a405-d785-4934-8db1-292cf06cc870 France | |
| 83afc316-6f7c-447a-ad22-3efe9952f764 France | |
| 96e7ce2e-a310-4805-a4ce-e4a66ed6d225 Hungary | |
| 52af3e78-6b8c-47d1-abd6-8936f75881db Spain | |
| 1e3c22f8-2b6f-431e-a6a1-7192aadca2df Belgium | |
| 2d19fca6-304e-4905-adfd-dc1cbebc9542 Norway | |
| 80c91073-9ea7-48e0-b20c-d774e2771508 Finland | |
| be9e2df8-1193-45eb-910e-309a36653809 Belgium | |
| 5d453654-80e9-43d1-857d-992051d3dd70 Germany | |
| 10fcc974-6f5b-42b6-af6c-5acbbad2b7c3 Germany | |
| 909aa27a-bee3-4c2c-874a-f4f3a5d5ba7f Poland | |
| edee92b6-a841-48e9-813e-612223cfc6c1 Netherlands | |
| ffbe848e-9a1e-495e-a53a-bfa01b1533c9 Hungary | |
| 4bccb95e-5cf0-4038-a7f2-9ebd19d52d22 Estonia | |
| 5002bc2d-daa5-472b-a4e1-93ad60cc5536 Greece | |
| cf4e59c3-083e-49fc-9842-feb07d2e8cbc Portugal | |
| 61c153da-c86d-42fc-9186-7f9ba227626b Denmark | |
| 0a771fc1-7021-4f33-8477-00285d853813 Germany | |
| 544563c5-22fb-43a4-aaad-e13e3be18382 Croatia | |
| d80ede72-b0e4-4317-a791-53940f9c5aee Poland | |
| 587e1da7-3199-4d13-9117-58173ad825c0 Czech Republic | |
| fcf2ba2e-cd5b-4be4-bb8d-b2d0d1747ac0 Sweden | |
| 97026af2-7d13-4ab9-9d53-37b778ab5661 Sweden | |
| f6e899a2-8c6a-4939-ab92-15a31584b918 Bulgaria | |
| 8c9fd5fd-f07b-40cf-b273-1b7cdc0d06c2 Poland | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644571290 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 414 mm |
| Product Net Height | 461 mm |
| Product Net Depth / Length | 396.5 mm |
| Product Net Weight | 54 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 615 mm |
| Package Level 1 Gross Weight | 67 kg |
| Package Level 1 EAN | 8015644571290 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 10000 cycle |
| Ue = 500 ... 690 V 8000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Power Loss | 378 W |
| Rated Current (In) | 1600 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 1600 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 50 kA |
| (230 V AC) 50 kA | |
| (400 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 50 kA | |
| (660 V AC) 50 kA | |
| (380 V AC) 50 kA | |
| (690 V AC) 50 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
| for 3 s 36 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 50 kA |
| (230 V AC) 50 kA | |
| (400 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 50 kA | |
| (660 V AC) 50 kA | |
| (380 V AC) 50 kA | |
| (690 V AC) 50 kA | |
| Rated Uninterrupted Current (Iu) | 1600 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR122/P-LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | E1 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0013 |
| Instructions and Manuals | 1SDH000460R0002 |
| 1SDH000460R0102 | |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
