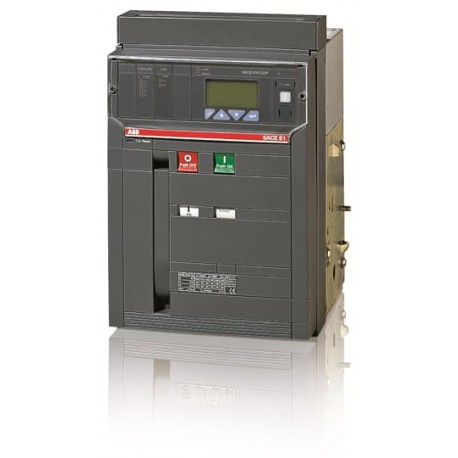

1SDA055701R1 ABB E1N800 PR122/P LSIG 3P F HR
1SDA055701R1
055701
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB E1N800 PR122/P LSIG 3P F HR functions as an air circuit breaker built to protect large-scale electrical distribution systems from overcurrent events and short circuits. These heavy components are commonly installed in main power switchboards of industrial facilities.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- SCIP: ad9d1d44-b550-439d-a8c3-8103c0937c9d Italy
- Simplified SCIP: 97fd6220-ea1a-417f-aa15-3b3bdaa3870b Sweden
- Environmental Information: 9AKK10103A6076
- EAN: 8015644570415
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 296 mm
- Product Net Height: 418 mm
- Product Net Depth / Length: 302 mm
- Product Net Weight: 40 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 515 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | ad9d1d44-b550-439d-a8c3-8103c0937c9d Italy |
| Simplified SCIP | 97fd6220-ea1a-417f-aa15-3b3bdaa3870b Sweden |
| 0a3cdd39-59b8-4ecb-8848-ba55b345923f Estonia | |
| a8dd0578-03b0-45c5-ba78-b9038d271190 Germany | |
| eeba4058-1a12-4ef8-94fc-31cc7d2bb86e Greece | |
| c0076ee7-7782-4bb0-ba0b-74224de33dc0 Hungary | |
| 79356876-8e71-492c-a460-4962c74eecd6 Belgium | |
| 2cabe78c-04c0-44b2-8995-e87386c8e869 Germany | |
| 824540e4-4d30-450e-b35e-7837dc1a344c Sweden | |
| b7be454b-9fc2-45d7-8167-08a25cf29e48 France | |
| 9f93e9a4-1cc4-453e-9a9c-9e36197b5e59 Spain | |
| 31f7ad85-1e2f-4bf4-985a-8280aeee975c France | |
| a64bd9ed-5bdc-45a6-959a-57aa72a4a793 Germany | |
| 749e0e9f-b461-4694-8e14-dac357d1e139 Poland | |
| e33c1a54-41e4-4b09-bb1d-0b1603a1c52d Bulgaria | |
| 9062faab-0971-4341-a354-4cdc4a6285e5 Portugal | |
| ca3c4089-0132-42f2-815b-47e4cb88b4ea Hungary | |
| 63547529-ee54-4938-9ad6-1703933c02b1 Germany | |
| 843a2dfb-3604-44d3-ad5b-f014a6ec42e6 Croatia | |
| a198b0cd-524d-42ec-ac28-ed6939f0ba6d Czech Republic | |
| 31a22f35-a6e5-48e3-a9da-d1a7eadabf01 Belgium | |
| 9f5ecd03-ff12-4068-9bd0-0e9fd4b39739 Germany | |
| 573741cd-5455-4949-b77c-4e3ada3ec325 Denmark | |
| fbe0f2df-721b-437e-b760-55b82595de2f Norway | |
| cd7ee03e-8c79-4814-93ed-c6867cd24f26 Poland | |
| 095be739-ccf8-4aaf-9422-042cdba39bc3 Finland | |
| 00e98702-a9ff-46d5-a659-2ba5ba7ee513 Netherlands | |
| a5f28124-7f5b-4791-8ac8-d36bd94d41fc Poland | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644570415 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 296 mm |
| Product Net Height | 418 mm |
| Product Net Depth / Length | 302 mm |
| Product Net Weight | 40 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 50 kg |
| Package Level 1 EAN | 8015644570415 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | F |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 10000 cycle |
| Ue = 500 ... 690 V 10000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 65 W |
| Rated Current (In) | 800 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 800 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 50 kA |
| (230 V AC) 50 kA | |
| (400 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 50 kA | |
| (660 V AC) 50 kA | |
| (380 V AC) 50 kA | |
| (690 V AC) 50 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
| for 3 s 36 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 50 kA |
| (230 V AC) 50 kA | |
| (400 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 50 kA | |
| (660 V AC) 50 kA | |
| (380 V AC) 50 kA | |
| (690 V AC) 50 kA | |
| Rated Uninterrupted Current (Iu) | 800 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR122/P-LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | E1 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Rear flat Horizontal | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0013 |
| Instructions and Manuals | 1SDH000460R0002 |
| 1SDH000460R0102 | |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
