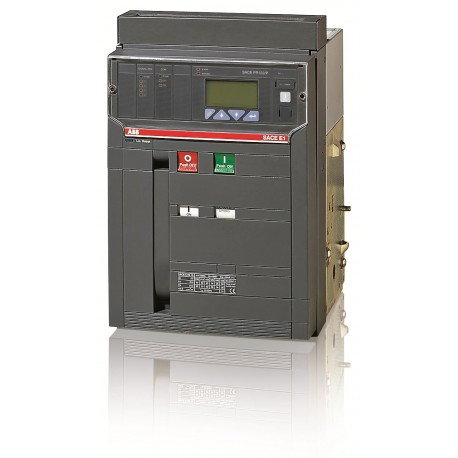

ABB 1SDA055637R1 1SDA055637R1 ABB E1B1250 PR122/P LSIG 3P F HR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA055637R1 ABB E1B1250 PR122/P LSIG 3P F HR

1SDA055637R1

055637

ABB

1 Pcs.

E1B1250 PR122/P LSIG 3P F HR E1B 1250 PR122/P-LSIG In=1250A 3p F HR

Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)Document availability on demand
SCIP4d5b7b3c-dac8-455f-ac86-ff38e891a37d Italy
Simplified SCIPa38d6f7d-e555-4dd7-aef4-ab7f2e5d17f3 Czech Republic
69e314bc-a99f-45f3-92b8-a98c904fce97 Belgium
ae537473-66a4-4602-92b6-9514f338cb2a Norway
671c4eb0-a9d5-475c-a75e-a2f2a6b514fb Croatia
9d220a77-1a71-4c75-933e-b5157e075e81 Germany
85eb95d3-eefb-4dd8-9ad2-305b9a0b1bd1 Poland
297220cb-c3d0-4b3a-a91c-241c322ba135 Denmark
99f75770-f91d-4248-8592-20b3b666c3f9 Hungary
1cadf6a4-67aa-4b55-88fc-37badd22c2be Germany
9ca73786-c6c7-4c71-bd8a-454436ceabc9 Portugal
31b9a4ac-3649-4773-a5c4-559e91efe57f Netherlands
4bd9c316-7f64-42a3-a278-aa76b7e91f8d Poland
340c31b4-1874-49ef-9a07-61864acee004 Estonia
270dc4aa-0441-49e8-93c3-e47bb0431c2f Sweden
58e1940c-7a88-4c67-af12-3b5d4603697e Poland
855dd6ec-cdaf-47fa-b830-f2b668b50d94 Germany
b9259ff0-e62e-41ee-9d75-707e1c02ba1e Sweden
ebc48af0-42af-4dc1-9938-d74c973b349c France
debe1db7-7501-45f9-a608-c455feb05d81 Hungary
f2c6caf8-8b5b-4c60-a589-921acf2488ac Spain
d59f225d-6b9b-4e0e-8c1a-f603cafc0e53 France
77872d03-0a2a-410b-bfac-6a012ac2d16e Bulgaria
604f300f-562d-47b8-b699-c8e92a0029cb Belgium
dca0497f-9469-4b87-87df-23157c3363c8 Germany
93ed76fd-347d-4b87-9f46-fb775d9bb7e9 Greece
97c4dedf-7d10-4447-a80e-c8b08597f07d Finland
5a6312f2-9f9b-43d5-b18a-3f2dbcb38fc7 Germany
Environmental
Environmental Information9AKK10103A6076
Ordering
EAN8015644569778
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width296 mm
Product Net Height418 mm
Product Net Depth / Length302 mm
Product Net Weight40 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width515 mm
Package Level 1 Height600 mm
Package Level 1 Depth / Length515 mm
Package Level 1 Gross Weight50 kg
Package Level 1 EAN8015644569778
Additional Information
Product Main TypeSACE Emax
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionF
Technical
Current TypeAC
Electrical DurabilityUe =< 440 V 10000 cycle
Ue = 500 ... 690 V 8000 cycle
30 cycles per hour
Mechanical Durability25000 cycle
60 cycles per hour
Number of Poles3P
Power Loss150 W
Rated Current (In)1250 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current (Ie)1250 A
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 42 kA
(230 V AC) 42 kA
(400 V AC) 42 kA
(415 V AC) 42 kA
(440 V AC) 42 kA
(500 V AC) 42 kA
(660 V AC) 42 kA
(380 V AC) 42 kA
(690 V AC) 42 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 42 kA
for 3 s 36 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 42 kA
(230 V AC) 42 kA
(400 V AC) 42 kA
(415 V AC) 42 kA
(440 V AC) 42 kA
(500 V AC) 42 kA
(660 V AC) 42 kA
(380 V AC) 42 kA
(690 V AC) 42 kA
Rated Uninterrupted Current (Iu)1250 A
Rated Voltage (Ur)690 V
ReleasePR122/P-LSIG
Release TypeEL
Short-Circuit Performance LevelB
StandardsIEC
Sub-typeE1
Terminal Connection TypeFixed Circuit-Breakers
Rear flat Horizontal
Certificates and Declarations
Data Sheet, Technical Information1SDC200006D0209
Declaration of Conformity - CE1SDL000165R0013
Instructions and Manuals1SDH000460R0002
1SDH000460R0102
External Classifications and Standards
Object Classification CodeQ
UNSPSC39120000
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
