View larger

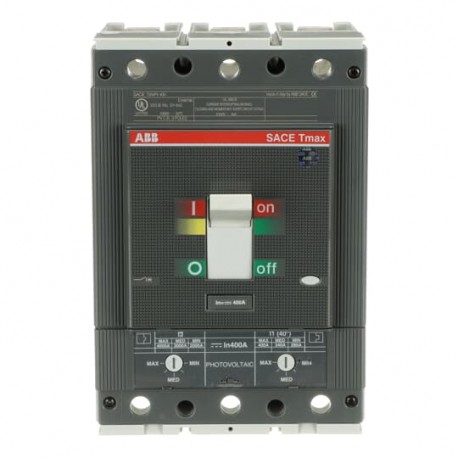

Images are for illustrative purposes only. Please refer to data sheet for details
1SDA054643R1 ABB RELE ELECT. PR222DS/PD LSI In250 4P T4
1SDA054643R1
054643
ABB
1 Pcs.
RELE ELECT. PR222DS/PD LSI In250 4P - T4
PR222DS/PD-LSI In=250 MODBUS T4 4p
Automation > Shunt release (for power circuit breaker)
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Ordering | |
| EAN | 8015644557485 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 1.3 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 120 mm |
| Package Level 1 Height | 160 mm |
| Package Level 1 Depth / Length | 190 mm |
| Package Level 1 Gross Weight | 1.4 kg |
| Package Level 1 EAN | 8015644557485 |
| Additional Information | |
| Product Main Type | Accessories for Tmax T |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | T4 |
| Suitable for Product Class | SACE Tmax T |
| Technical | |
| Configuration Type | Loose or configurable |
| Number of Poles | 4P |
| Rated Current (In) | 250 A |
| Release Type | Electronic trip unit |
| Standards | IEC |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210015D0201 |
| Declaration of Conformity - CE | 1SDL000165R0001 |
| Instructions and Manuals | 1SDC210015D0201 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370418 |
| Feature Name | Feature Value |
|---|---|
| Type of electric connection (EF003961) | Other |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Suitable for power circuit breaker (EF005863) | Yes |
| Suitable for off-load switch (EF001543) | No |
| Suitable for motor safety switch (EF005826) | No |
| Suitable for overload relay (EF001545) | Yes |
