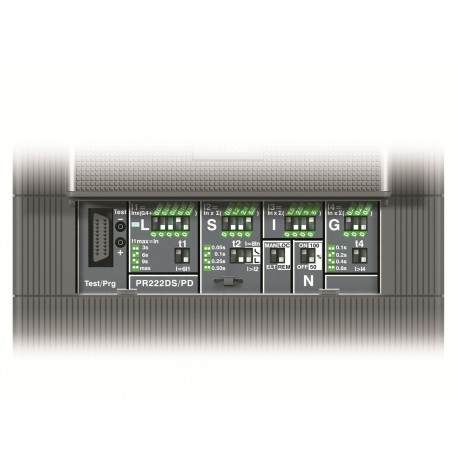

ABB 1SDA054639R1 1SDA054639R1 ABB RELE ELECT. PR222DS/PD LSIG In160 3P -T4 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA054639R1 ABB RELE ELECT. PR222DS/PD LSIG In160 3P -T4

1SDA054639R1

054639

ABB

1 Pcs.

RELE ELECT. PR222DS/PD LSIG In160 3P -T4 PR222DS/PD-LSIG In=160 MODBUS T4 3p

Automation > Shunt release (for power circuit breaker)
Service Breakers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An ABB RELE ELECT. PR222DS/PD LSIG In160 3P -T4 electronic trip unit offers precise protection and communication capabilities for molded case circuit breakers. Units of this category monitor phase currents and trip the breaker during overload or short-circuit conditions to prevent electrical damage. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): Document availability on demand
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • EAN: 8015644557447
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 1 kg
  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 120 mm
  • Package Level 1 Height: 160 mm
  • Package Level 1 Depth / Length: 190 mm
  • Package Level 1 Gross Weight: 1.1 kg
  • Package Level 1 EAN: 8015644557447
  • Product Main Type: Accessories for Tmax T

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)Document availability on demand
Toxic Substances Control Act - TSCA9AKK108467A8326
Ordering
EAN8015644557447
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight1 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width120 mm
Package Level 1 Height160 mm
Package Level 1 Depth / Length190 mm
Package Level 1 Gross Weight1.1 kg
Package Level 1 EAN8015644557447
Additional Information
Product Main TypeAccessories for Tmax T
Product NameAccessory
Product TypeAccessory
Suitable ForT4
Suitable for Product ClassSACE Tmax T
Technical
Configuration TypeLoose or configurable
Number of Poles3P
Rated Current (In)160 A
Release TypeElectronic trip unit
StandardsIEC
Certificates and Declarations
Data Sheet, Technical Information1SDC210015D0201
Declaration of Conformity - CE1SDL000165R0001
Instructions and Manuals1SDC210015D0201
External Classifications and Standards
Object Classification CodeQ
UNSPSC39121100
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370418

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
