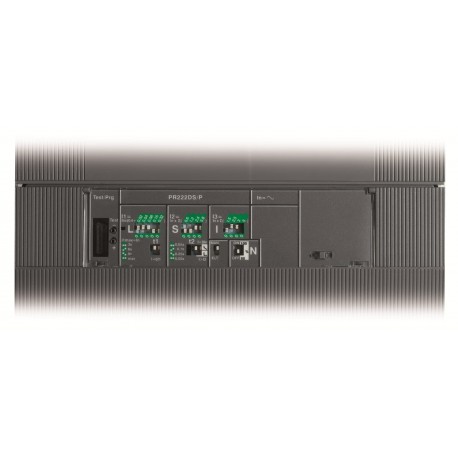

1SDA054625R1 ABB RELE ELECT. PR222DS/P LSIG In160 4P T4
1SDA054625R1
054625
ABB
1 Pcs.
Automation > Shunt release (for power circuit breaker)
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb 1SDA054625R1 is an electronic trip unit designed to monitor electrical loads and coordinate protective functions inside modular circuit breakers. These devices help safeguard electrical distribution networks from overcurrent and fault scenarios. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- EAN: 8015644557300
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 1.3 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 12 mm
- Package Level 1 Height: 16 mm
- Package Level 1 Depth / Length: 19 mm
- Package Level 1 Gross Weight: 1.4 kg
- Package Level 1 EAN: 8015644557300
- Product Main Type: Accessories for Tmax T
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Ordering | |
| EAN | 8015644557300 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 1.3 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 12 mm |
| Package Level 1 Height | 16 mm |
| Package Level 1 Depth / Length | 19 mm |
| Package Level 1 Gross Weight | 1.4 kg |
| Package Level 1 EAN | 8015644557300 |
| Additional Information | |
| Product Main Type | Accessories for Tmax T |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | T4 |
| Suitable for Product Class | SACE Tmax T |
| Technical | |
| Configuration Type | Loose or configurable |
| Number of Poles | 4P |
| Rated Current (In) | 160 A |
| Release | PR222DS/P-LSIG |
| Release Type | Electronic trip unit |
| Standards | IEC |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210015D0201 |
| Declaration of Conformity - CE | 1SDL000165R0001 |
| Instructions and Manuals | 1SDC210015D0201 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370418 |
