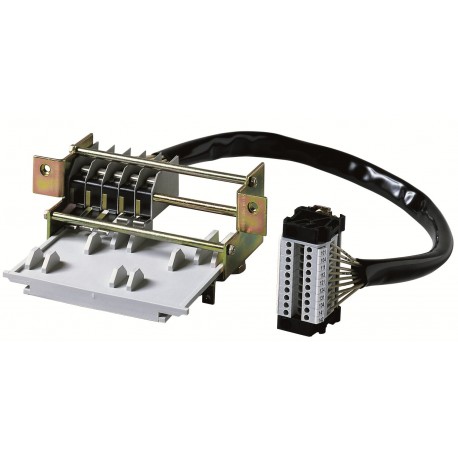

1SDA050146R1 ABB SENAL ELECx5 INSER/EXTR-TEST/EXTR
1SDA050146R1
050146
ABB
1 Pcs.
Automation > Auxiliary contact block
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An insertion and extraction accessory, specifically the 1SDA050146R1 ABB SENAL ELECx5 INSER/EXTR-TEST/EXTR built by Abb, provides mechanical interface control for drawout air circuit breakers. These components allow operators to rack circuit breakers through test and disconnected positions within heavy electrical enclosures.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- Environmental Information: 1SDC200006D0204
- EAN: 8015644502478
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 1 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Gross Weight: 0.417 kg
- Package Level 1 EAN: 8015644502478
- Product Main Type: Accessories for Emax
- Product Name: Accessory
- Product Type: Accessory
- Suitable For: E1, E2, E3, E4, E6
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| Environmental | |
| Environmental Information | 1SDC200006D0204 |
| Ordering | |
| EAN | 8015644502478 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 1 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Gross Weight | 0.417 kg |
| Package Level 1 EAN | 8015644502478 |
| Additional Information | |
| Product Main Type | Accessories for Emax |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | E1, E2, E3, E4, E6 |
| Suitable for Product Class | SACE Emax |
| Technical | |
| Configuration Type | Loose or configurable |
| Standards | IEC |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0013 |
| 1SDL000165R0014 | |
| 1SDL000165R0015 | |
| 1SDL000165R0016 | |
| 1SDL000165R0017 | |
| Instructions and Manuals | 1SDC200006D0209 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
