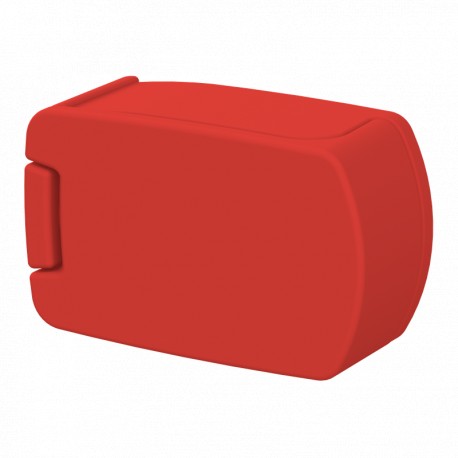

ABB 1SCA164211R1001 1SCA164211R1001 ABB OHR-G1M OT Plus Red Solo Direct Lever View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA164211R1001 ABB OHR-G1M OT Plus Red Solo Direct Lever

1SCA164211R1001

164211

ABB

10 Pcs.

OHR-G1M OT Plus Red Solo Direct Lever OHR-G1M DIRECT HANDLE

Automation > Handle for power circuit breaker
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 1SCA164211R1001 ABB OHR-G1M OT Plus Red Solo Direct Lever functions as an ergonomic manual operator designed to actuate electrical disconnect switches and circuit breakers. Direct-mount control levers enable operators to securely open and close heavy-duty switching devices mounted within industrial control panels.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Mechanical Drawings: OHR_G1M_SR.STP
  • Minimum Order Quantity: 10 piece
  • Customs Tariff Number: 85389099
  • Country or Territory of Origin: Finland
  • Product Net Width: 18.5 mm
  • Product Net Height: 11.7 mm
  • Product Net Depth / Length: 28.5 mm
  • Product Net Weight: 0.005 kg
  • Package Level 1 Units: bag 10 piece
  • Package Level 1 Width: 165 mm
  • Package Level 1 Depth / Length: 60 mm
  • Package Level 1 Height: 18 mm
  • Package Level 1 Gross Weight: 0.006 kg
  • Package Level 1 EAN: 6417019934013
  • ETIM 9: EC000229 - Handle for power circuit breaker

More info

▲
ABB EcoSolutions
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Popular Downloads
Mechanical DrawingsOHR_G1M_SR.STP
Ordering
Minimum Order Quantity10 piece
Customs Tariff Number85389099
Country or Territory of OriginFinland
Dimensions
Product Net Width18.5 mm
Product Net Height11.7 mm
Product Net Depth / Length28.5 mm
Product Net Weight0.005 kg
Container Information
Package Level 1 Unitsbag 10 piece
Package Level 1 Width165 mm
Package Level 1 Depth / Length60 mm
Package Level 1 Height18 mm
Package Level 1 Gross Weight0.006 kg
Package Level 1 EAN6417019934013
External Classifications and Standards
ETIM 9EC000229 - Handle for power circuit breaker
ETIM 10EC000229 - Handle for power circuit breaker
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)36
E-Number (Sweden)3172261
