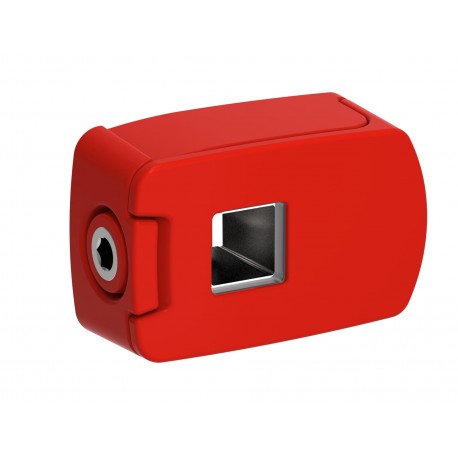

ABB 1SCA164209R1001 1SCA164209R1001 ABB OHR-G1 OT Plus Direct Red Lever and Axle View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA164209R1001 ABB OHR-G1 OT Plus Direct Red Lever and Axle

1SCA164209R1001

164209

ABB

10 Pcs.

OHR-G1 OT Plus Direct Red Lever and Axle OHR-G1 DIRECT HANDLE

Automation > Handle for power circuit breaker
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An 1SCA164209R1001 ABB OHR-G1 OT Plus Direct Red Lever and Axle is a mechanical operator interface used for manually engaging and disengaging industrial circuit protection devices from the exterior of an enclosure. Operators rely on these handles to securely control power distribution equipment while maintaining safety separation from live internal components. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Mechanical Drawings: OHR_G1_SR.STP
  • Minimum Order Quantity: 10 piece
  • Customs Tariff Number: 85389099
  • Country or Territory of Origin: Finland
  • Product Net Width: 18.5 mm
  • Product Net Height: 11.7 mm
  • Product Net Depth / Length: 28.5 mm
  • Product Net Weight: 0.005 kg
  • Package Level 1 Units: bag 10 piece
  • Package Level 1 Width: 165 mm
  • Package Level 1 Depth / Length: 60 mm
  • Package Level 1 Height: 18 mm
  • Package Level 1 Gross Weight: 0.006 kg
  • Package Level 1 EAN: 6417019934006
  • ETIM 9: EC000229 - Handle for power circuit breaker

More info

▲
ABB EcoSolutions
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Popular Downloads
Mechanical DrawingsOHR_G1_SR.STP
Ordering
Minimum Order Quantity10 piece
Customs Tariff Number85389099
Country or Territory of OriginFinland
Dimensions
Product Net Width18.5 mm
Product Net Height11.7 mm
Product Net Depth / Length28.5 mm
Product Net Weight0.005 kg
Container Information
Package Level 1 Unitsbag 10 piece
Package Level 1 Width165 mm
Package Level 1 Depth / Length60 mm
Package Level 1 Height18 mm
Package Level 1 Gross Weight0.006 kg
Package Level 1 EAN6417019934006
External Classifications and Standards
ETIM 9EC000229 - Handle for power circuit breaker
ETIM 10EC000229 - Handle for power circuit breaker
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)36
E-Number (Sweden)3172259

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
