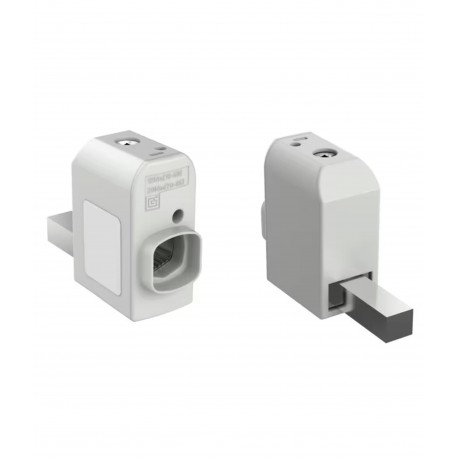

1SCA163567R1001 ABB Cu & Al Cable Terminal 95mm2 OZXT95
1SCA163567R1001
163567
ABB
3 Pcs.
Cu&Al Cable Terminal 95mm2 OZXT95
OZXT95 TERMINAL SET Al/Cu 16…95mm2 (3 PCS)
Automation > Accessories/spare parts for low-voltage switch technology
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A cable terminal such as the Abb 1SCA163567R1001 provides a secure, low-resistance mechanical and electrical connection point for copper and aluminum conductors within power distribution and switchgear assemblies.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Data Sheet, Technical Information: 9AKK108468A5537
- Instructions and Manuals: 1SCC390196M0201
- Mechanical Drawings: OZXT95.STP
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Country or Territory of Origin: Finland
- Product Net Width: 23.4 mm
- Product Net Height: 51.0 mm
- Product Net Depth / Length: 67.8 mm
- Product Net Weight: 0.059 kg
- Package Level 1 Units: bag 3 piece
- Package Level 1 Width: 150 mm
- Package Level 1 Depth / Length: 100 mm
- Package Level 1 Height: 40 mm
- Package Level 1 Gross Weight: 0.180 kg
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK108468A5537 |
| 1SCC301020C0201 | |
| Instructions and Manuals | 1SCC390196M0201 |
| Mechanical Drawings | OZXT95.STP |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 23.4 mm |
| Product Net Height | 51.0 mm |
| Product Net Depth / Length | 67.8 mm |
| Product Net Weight | 0.059 kg |
| Container Information | |
| Package Level 1 Units | bag 3 piece |
| Package Level 1 Width | 150 mm |
| Package Level 1 Depth / Length | 100 mm |
| Package Level 1 Height | 40 mm |
| Package Level 1 Gross Weight | 0.180 kg |
| Package Level 1 EAN | 6417019931616 |
| Technical | |
| Cable Cross-Section | Cu 16…95 mm² |
| Al 16…95 mm² | |
| Conventional Thermal Current (Ithe) | 230 A |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-1 690 V |
| Rated Operational Voltage | Main Circuit 690 V |
| Recommended Screw Driver | Main Circuit Hexagon |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 12...20 N·m |
| Wire Stripping Length | Main Circuit 28 mm |
| Main Circuit 1.10 in | |
| External Classifications and Standards | |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 10 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| eClass | V11.1 : 27371392 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 36 |
| E-Number (Sweden) | 2670889 |
