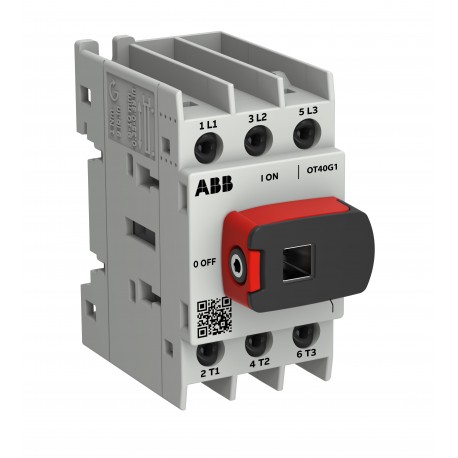

ABB 1SCA163475R1001 1SCA163475R1001 ABB Int. OT Plus OT40G1-3BQ Disconnect View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA163475R1001 ABB Int. OT Plus OT40G1-3BQ Disconnect

1SCA163475R1001

163475

ABB

1 Pcs.

Int. OT Plus OT40G1-3BQ Disconnect OT40G1-3BQ SWITCH DISCONNECTOR

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetNo non-hazardous waste is sent to a landfill
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions1SCC301152M0201
Environmental Product Declaration - EPD1SCC301349D0201
Extended Product LifetimeProduct Durability
Improved Energy Efficiency for CustomersProduct Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 92,5 %
Sustainable Material Content in Packaging (wt. %)FSC 100% Cardboard - 35.9 %
FSC 100% Cardboard - 41.98 %
FSC 100% Cardboard - 22.12 %
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Popular Downloads
Instructions and Manuals1SCC301148M0201
Mechanical DrawingsOT16-63G1_3B_SR.STP
Environmental
Degree of ProtectionFront IP20
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85363030
Country or Territory of OriginFinland
Dimensions
Product Net Width35 mm
Product Net Height68 mm
Product Net Depth / Length62 mm
Product Net Weight0.106 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width37 mm
Package Level 1 Depth / Length71 mm
Package Level 1 Height64 mm
Package Level 1 Gross Weight0.126 kg
Package Level 1 EAN6417019931265
Package Level 2 Width91 mm
Package Level 2 Depth / Length263 mm
Package Level 2 Height170 mm
Package Level 2 Gross Weight1.26 kg
Technical
Connecting Capacity Main CircuitFlexible with Ferrule 1x Cu 0.75…4 mm²
Solid 1x Cu 0.75…4 mm²
Flexible 1x Cu 0.75…10 mm²
Stranded 1x Cu 0.75…10 mm²
Conventional Free-air Thermal Current (Ith)40 A
Conventional Thermal Current (Ithe)40 A
Handle ColorBlack
Handle Length28.5 mm
Handle TypeKnob
Lock TypePadlockable
Maximum Mounted Auxiliary Contacts4 NO, 4 NC
Mechanical DurabilityNr. Operations 100000
Mounting TypeBase/DIN mounting
Number of Poles3P
Operating ModeFront
Position of Line TerminalsTop In - Bottom Out
Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 1.0 W
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)acc. to IEC 60947-1 800 V
Rated Operational Current AC-21A (Ie)(415 V) 40 A
(690 V) 40 A
Rated Operational Current AC-22A (Ie)(415 V) 40 A
(690 V) 40 A
Rated Operational Current AC-23A (Ie)(415 V) 40 A
(690 V) 25 A
Rated Operational Power AC-23A (Pe)(415 V) 18.5 kW
(690 V) 22 kW
Rated Operational VoltageMain Circuit 800 V
Rated Short-Circuit Making Capacity (Icm)(690 V) 1.76 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 0.8 kA
for 0.2 s 1.25 kA
Switches Operating MechanismMechanism on Top of the Switch
Terminal TypeSpring Terminals
Wire Stripping LengthMain Circuit 9-10 mm
Main Circuit 0.35-0.39 in
Technical UL/CSA
Maximum Operating Voltage UL/CSA600 V
Ampere Rating40 A
Horsepower Rating UL/CSA(110 ... 120 V AC) Single Phase 2 Hp
(240 V AC) Single Phase 5 Hp
(440 ... 480 V AC) Single Phase 10 Hp
(550 ... 600 V AC) Single Phase 15 Hp
(240 V AC) Three Phase 10 Hp
(440 ... 480 V AC) Three Phase 20 Hp
(550 ... 600 V AC) Three Phase 25 Hp
Wire Size1x 18-8 AWG
Certificates and Declarations
Declaration of Conformity - CE1SCC301348D2701
External Classifications and Standards
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
IDEA Granular Category Code (IGCC)5290 >> Disconnect switch
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)36
E-Number (Sweden)3172235

Product Datasheet
