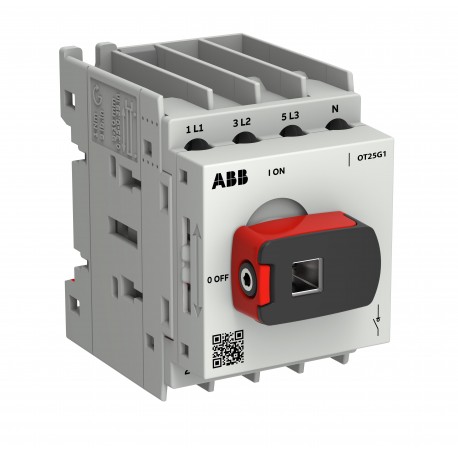

1SCA163446R1001 ABB Int. OT Plus OT25G1-4MSN2 Disconnect
1SCA163446R1001
163446
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB Int. OT Plus OT25G1-4MSN2 Disconnect is a mechanical switching device used to safely isolate electrical circuits and equipment from their power supply during maintenance or emergency situations. These disconnectors are deployed in industrial control panels and distribution boards to ensure visible break points for technician safety.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: No non-hazardous waste is sent to a landfill
- End Of Life Disassembling Instructions: 1SCC301152M0201
- Environmental Product Declaration - EPD: 1SCC301349D0201
- Extended Product Lifetime: Product Durability
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 92,5 %
- Sustainable Material Content in Packaging (wt. %): FSC 100% Cardboard - 35.9 %
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Instructions and Manuals: 1SCC301149M0201
- Mechanical Drawings: OT16_63G1_4M_N2_SR.STP
- Degree of Protection: Front IP20
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85363030
- Country or Territory of Origin: Finland
- Product Net Width: 46 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| UL 2799 Zero Waste To Landfill Validation available | |
| End Of Life Disassembling Instructions | 1SCC301152M0201 |
| Environmental Product Declaration - EPD | 1SCC301349D0201 |
| Extended Product Lifetime | Product Durability |
| Improved Energy Efficiency for Customers | Product Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 92,5 % |
| Sustainable Material Content in Packaging (wt. %) | FSC 100% Cardboard - 35.9 % |
| FSC 100% Cardboard - 41.98 % | |
| FSC 100% Cardboard - 22.12 % | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Popular Downloads | |
| Instructions and Manuals | 1SCC301149M0201 |
| Mechanical Drawings | OT16_63G1_4M_N2_SR.STP |
| Environmental | |
| Degree of Protection | Front IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363030 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 46 mm |
| Product Net Height | 68 mm |
| Product Net Depth / Length | 74 mm |
| Product Net Weight | 0.166 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 48 mm |
| Package Level 1 Depth / Length | 71 mm |
| Package Level 1 Height | 74 mm |
| Package Level 1 Gross Weight | 0.189 kg |
| Package Level 1 EAN | 6417019931159 |
| Package Level 2 Units | box 10 piece |
| Package Level 2 Width | 91 mm |
| Package Level 2 Depth / Length | 298 mm |
| Package Level 2 Height | 170 mm |
| Package Level 2 Gross Weight | 1.89 kg |
| Technical | |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1/2x Cu 0.75…4 mm² |
| Solid 1/2x Cu 0.75…6 mm² | |
| Flexible 1x Cu 1.5…16 mm² | |
| Flexible 2x Cu 1.5…6 mm² | |
| Stranded 1x Cu 1.5…16 mm² | |
| Stranded 2x Cu 1.5…6 mm² | |
| Conventional Free-air Thermal Current (Ith) | 25 A |
| Conventional Thermal Current (Ithe) | 25 A |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Switched - Late-break and Early-make | |
| Handle Color | Black |
| Handle Length | 28.5 mm |
| Handle Type | Knob |
| Lock Type | Padlockable |
| Maximum Mounted Auxiliary Contacts | 4 NO, 4 NC |
| Mechanical Durability | Nr. Operations 100000 |
| Mounting Type | Base/DIN mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out |
| Bottom In - Top Out | |
| Power Loss | at Rated Operating Conditions per Pole 0.4 W |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-1 800 V |
| Rated Operational Current AC-21A (Ie) | (415 V) 25 A |
| (690 V) 25 A | |
| Rated Operational Current AC-22A (Ie) | (415 V) 25 A |
| (690 V) 25 A | |
| Rated Operational Current AC-23A (Ie) | (415 V) 25 A |
| (690 V) 25 A | |
| Rated Operational Power AC-23A (Pe) | (415 V) 11 kW |
| (690 V) 22 kW | |
| Rated Operational Voltage | Main Circuit 800 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 1.76 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 0.8 kA |
| for 0.2 s 1.25 kA | |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Switches Operating Mechanism | Mechanism on Top of the Switch |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 1 N·m |
| Wire Stripping Length | Main Circuit 9-10 mm |
| Main Circuit 0.35-0.39 in | |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | 600 V |
| Ampere Rating | 30 A |
| Horsepower Rating UL/CSA | (110 ... 120 V AC) Single Phase 1.5 Hp |
| (240 V AC) Single Phase 3 Hp | |
| (440 ... 480 V AC) Single Phase 7.5 Hp | |
| (550 ... 600 V AC) Single Phase 10 Hp | |
| (240 V AC) Three Phase 7.5 Hp | |
| (440 ... 480 V AC) Three Phase 15 Hp | |
| (550 ... 600 V AC) Three Phase 20 Hp | |
| Tightening Torque UL/CSA | UL 1 lbf·in |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC301348D2701 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 36 |
| E-Number (Sweden) | 3172231 |
