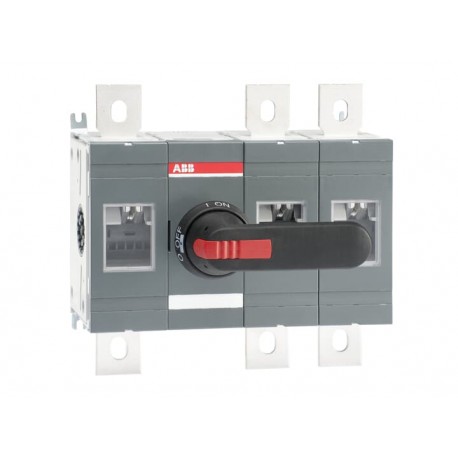

1SCA162999R1001 ABB Int. Sec. for 800-1000VAC OTHV800E12P
1SCA162999R1001
1SCA162999R1001
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An internal section device like the Abb 1SCA162999R1001 ABB Int. Sec. for 800-1000VAC OTHV800E12P is designed to support modular switching assemblies and manage high-voltage electrical pathways safely within heavy industrial control panels. It provides structural and functional compartmentalization for specialized medium-voltage operational configurations.
Exact pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Data Sheet, Technical Information: 9AKK108469A0610
- Instructions and Manuals: 1SCC301042M0211
- Mechanical Drawings: 1SCC301320F0001
- Degree of Protection: Front IP00
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Country or Territory of Origin: Finland
- Product Net Width: 266 mm
- Product Net Height: 250 mm
- Product Net Depth / Length: 140 mm
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK108469A0610 |
| Instructions and Manuals | 1SCC301042M0211 |
| Mechanical Drawings | 1SCC301320F0001 |
| 1SCC301319F0001 | |
| OT600_800E12.igs | |
| Environmental | |
| Degree of Protection | Front IP00 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 266 mm |
| Product Net Height | 250 mm |
| Product Net Depth / Length | 140 mm |
| Product Net Weight | 5.5 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 152 mm |
| Package Level 1 Depth / Length | 260 mm |
| Package Level 1 Height | 335 mm |
| Package Level 1 Gross Weight | 6.5 kg |
| Package Level 1 EAN | 6417019929514 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | 800 A |
| Conventional Thermal Current (Ithe) | 800 A |
| Degree of Protection | Front IP00 |
| Handle Color | Black |
| Handle Length | 125 mm |
| Handle Type | Pistol type handle included |
| Mechanical Durability | Nr. Operations 10000 |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-1 1000 V |
| Rated Operational Current AC-21A (Ie) | (800 V AC) 800 A |
| (1000 V AC) 800 A | |
| Rated Operational Current AC-22A (Ie) | (800 V) 800 A |
| (1000 V AC) 800 A | |
| Rated Operational Current AC-23A (Ie) | (800 V) 400 A |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V) 80 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kA |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | Mechanism Between the Poles |
| 12 (Between the Poles) | |
| Terminal Type | Lug terminals |
| Terminal Width | 39 mm |
| Tightening Torque | acc. IEC 60947-1 50 … 75 N·m |
| Technical UL/CSA | |
| Tightening Torque | acc. IEC 60947-1 50 … 75 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC301325D0201 |
| FIMKO Certificate | 1SCC301325D0201 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
