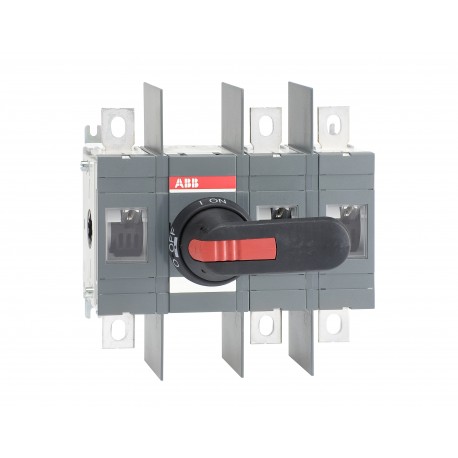

ABB 1SCA162987R1001 1SCA162987R1001 ABB Int. Sec. for 800-1000VAC OTHV400E12WP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA162987R1001 ABB Int. Sec. for 800-1000VAC OTHV400E12WP

1SCA162987R1001

1SCA162987R1001

ABB

1 Pcs.

Int. Sec. for 800-1000VAC OTHV400E12WP OTHV400E12WP SWITCH DISCONNECTOR

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Specialized internal sections like the 1SCA162987R1001 ABB Int. Sec. for 800-1000VAC OTHV400E12WP provide vital modular components for high-voltage industrial switchgear systems. They ensure precise electrical separation and structural integrity within demanding power distribution frameworks. Specific pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 1SCC011021D0201
  • RoHS Declaration: 1SCC011020D0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Toxic Substances Control Act - TSCA: 1SCC011025D0201
  • Data Sheet, Technical Information: 9AKK108469A0610
  • Instructions and Manuals: 1SCC301035M0019
  • Mechanical Drawings: 1SCC301268F0002
  • Degree of Protection: Front IP00
  • Pollution Degree: 3
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85365080
  • Country or Territory of Origin: Finland
  • Product Net Width: 221 mm
  • Product Net Height: 220 mm
  • Product Net Depth / Length: 107 mm

More info

▲
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information9AKK108469A0610
Instructions and Manuals1SCC301035M0019
Mechanical Drawings1SCC301268F0002
1SCC301267F0002
Environmental
Degree of ProtectionFront IP00
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width221 mm
Product Net Height220 mm
Product Net Depth / Length107 mm
Product Net Weight3.4 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width170 mm
Package Level 1 Depth / Length250 mm
Package Level 1 Height290 mm
Package Level 1 Gross Weight3.6 kg
Package Level 1 EAN6417019929392
Technical
Conventional Free-air Thermal Current (Ith)400 A
Conventional Thermal Current (Ithe)400 A
Degree of ProtectionFront IP00
Handle ColorBlack
Handle Length95 mm
Handle TypePistol type handle included
Mechanical DurabilityNr. Operations 16000
Mounting TypeBase mounting
Number of Poles3P
Operating ModeFront
Pollution Degree3
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)acc. to IEC 60947-1 1000 V
Rated Operational Current AC-21A (Ie)(800 V AC) 400 A
(1000 V AC) 400 A
Rated Operational Current AC-22A (Ie)(800 V) 400 A
(1000 V AC) 400 A
Rated Operational Current AC-23A (Ie)(800 V) 200 A
Rated Short-Circuit Making Capacity (Icm)(1000 V) 65 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 15 kA
StandardsIEC 60947-3
Switches Operating MechanismMechanism Between the Poles
12 (Between the Poles)
Terminal TypeLug terminals
Terminal Width25 mm
Tightening Torqueacc. IEC 60947-1 30 … 44 N·m
Technical UL/CSA
Tightening Torqueacc. IEC 60947-1 30 … 44 N·m
Certificates and Declarations
Declaration of Conformity - CE1SCC301324D0201
FIMKO Certificate1SCC301324D0201
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122233
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
