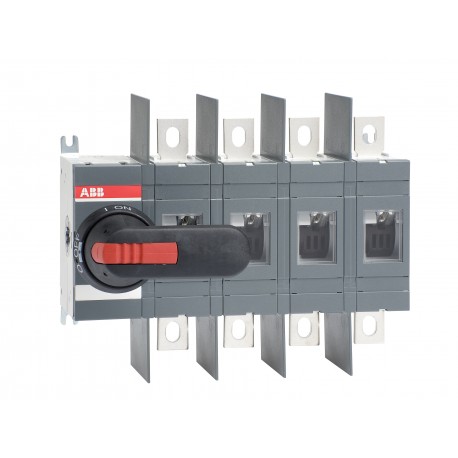

1SCA162979R1001 ABB Int. Sec. for 800-1000VAC OTHV315E04WP
1SCA162979R1001
1SCA162979R1001
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This Abb 1SCA162979R1001 internal section is an engineered modular assembly used inside high-voltage switchgear configurations to separate and support electrical components safely. Such parts ensure organized layout geometry and effective insulation within demanding electrical installations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Data Sheet, Technical Information: 9AKK108469A0610
- Instructions and Manuals: 1SCC301035M0019
- Mechanical Drawings: 1SCC301264F0002
- Degree of Protection: Front IP00
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Country or Territory of Origin: Finland
- Product Net Width: 275 mm
- Product Net Height: 220 mm
- Product Net Depth / Length: 107 mm
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK108469A0610 |
| Instructions and Manuals | 1SCC301035M0019 |
| Mechanical Drawings | 1SCC301264F0002 |
| 1SCC301263F0002 | |
| OT400U04.igs | |
| Environmental | |
| Degree of Protection | Front IP00 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 275 mm |
| Product Net Height | 220 mm |
| Product Net Depth / Length | 107 mm |
| Product Net Weight | 4.3 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 170 mm |
| Package Level 1 Depth / Length | 250 mm |
| Package Level 1 Height | 290 mm |
| Package Level 1 Gross Weight | 4.6 kg |
| Package Level 1 EAN | 6417019929316 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | 315 A |
| Conventional Thermal Current (Ithe) | 315 A |
| Degree of Protection | Front IP00 |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle Color | Black |
| Handle Length | 95 mm |
| Handle Type | Pistol type handle included |
| Mechanical Durability | Nr. Operations 16000 |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-1 1000 V |
| Rated Operational Current AC-21A (Ie) | (800 V AC) 315 A |
| (1000 V AC) 315 A | |
| Rated Operational Current AC-22A (Ie) | (800 V) 315 A |
| (1000 V AC) 315 A | |
| Rated Operational Current AC-23A (Ie) | (800 V) 200 A |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V) 65 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 15 kA |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| 04 (Left Side) | |
| Terminal Type | Lug terminals |
| Terminal Width | 25 mm |
| Tightening Torque | acc. IEC 60947-1 30 … 44 N·m |
| Technical UL/CSA | |
| Tightening Torque | acc. IEC 60947-1 30 … 44 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC301324D0201 |
| FIMKO Certificate | 1SCC301324D0201 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
