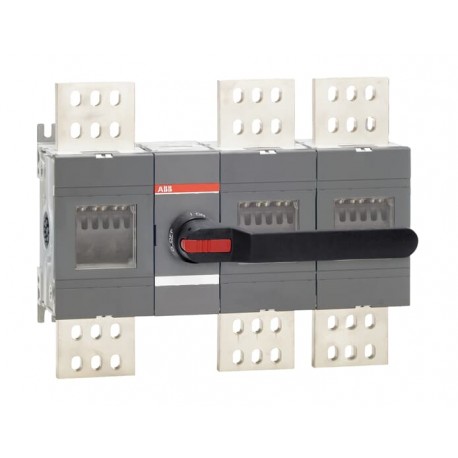

1SCA162969R1001 ABB Int. Sec. for 800-1000VAC OTHV2500E12P
1SCA162969R1001
1SCA162969R1001
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Abb interior section accessory provides structural and functional compartmentalization inside heavy-duty electrical switchgear and enclosure systems. These components support correct hardware alignment and maintain isolation barriers within high-voltage distribution networks.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Data Sheet, Technical Information: 9AKK108469A0610
- Instructions and Manuals: 1SCC301078M0205
- Mechanical Drawings: 1SCC301522F0001
- Degree of Protection: Front IP00
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Country or Territory of Origin: Finland
- Product Net Width: 472.5 mm
- Product Net Height: 376.5 mm
- Product Net Depth / Length: 145.5 mm
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK108469A0610 |
| Instructions and Manuals | 1SCC301078M0205 |
| Mechanical Drawings | 1SCC301522F0001 |
| 1SCC301521F0001 | |
| OT2500E12.igs | |
| Environmental | |
| Degree of Protection | Front IP00 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 472.5 mm |
| Product Net Height | 376.5 mm |
| Product Net Depth / Length | 145.5 mm |
| Product Net Weight | 25.8 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 190 mm |
| Package Level 1 Depth / Length | 407 mm |
| Package Level 1 Height | 619 mm |
| Package Level 1 Gross Weight | 27.7 kg |
| Package Level 1 EAN | 6417019929217 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | 2500 A |
| Conventional Thermal Current (Ithe) | 2500 A |
| Degree of Protection | Front IP00 |
| Handle Color | Black |
| Handle Length | 274 mm |
| Handle Type | Pistol type handle included |
| Mechanical Durability | Nr. Operations 6000 |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-1 1000 V |
| Rated Operational Current AC-21B (Ie) | (800 V) 2500 A |
| Rated Operational Current AC-22B (Ie) | (800 V) 2500 A |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V) 176 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 55 kA |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | Mechanism Between the Poles |
| 12 (Between the Poles) | |
| Terminal Type | Lug terminals |
| Terminal Width | 100 mm |
| Tightening Torque | acc. IEC 60947-1 50 … 75 N·m |
| Technical UL/CSA | |
| Tightening Torque | acc. IEC 60947-1 50 … 75 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC301327D0201 |
| FIMKO Certificate | 1SCC301327D0201 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
