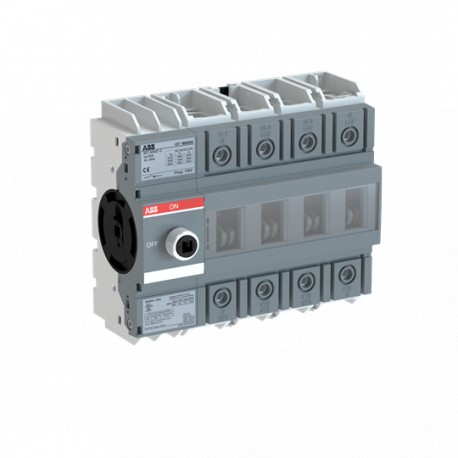

1SCA162954R1001 ABB Int. Sec. for 800-1000VAC OTHV160G04
1SCA162954R1001
1SCA162954R1001
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered for high-voltage applications, the Abb internal section disconnector OTHV160G04 provides dependable circuit isolation in demanding electrical configurations. Such modular components are typically added to switchgear assemblies to manage auxiliary switching functions and enhance overall system safety. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Data Sheet, Technical Information: 9AKK108469A0610
- Instructions and Manuals: 1SCC301089M0204
- Mechanical Drawings: OT160G4_model.igs
- Degree of Protection: Front IP20
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Country or Territory of Origin: Finland
- Product Net Width: 150 mm
- Product Net Height: 130 mm
- Product Net Depth / Length: 73 mm
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK108469A0610 |
| Instructions and Manuals | 1SCC301089M0204 |
| Mechanical Drawings | OT160G4_model.igs |
| Environmental | |
| Degree of Protection | Front IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 150 mm |
| Product Net Height | 130 mm |
| Product Net Depth / Length | 73 mm |
| Product Net Weight | 1.0 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 96 mm |
| Package Level 1 Depth / Length | 160 mm |
| Package Level 1 Height | 244 mm |
| Package Level 1 Gross Weight | 1.1 kg |
| Package Level 1 EAN | 6417019929064 |
| Technical | |
| Cable Cross-Section | Cu 10...70 mm² |
| Conventional Free-air Thermal Current (Ith) | 160 A |
| Conventional Thermal Current (Ithe) | 160 A |
| Degree of Protection | Front IP20 |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle Type | Handle and shaft not included |
| Mechanical Durability | Nr. Operations 20000 |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-1 1000 V |
| Rated Operational Current AC-21A (Ie) | (800 V AC) 160 A |
| (1000 V AC) 125 A | |
| Rated Operational Current AC-22A (Ie) | (800 V) 125 A |
| (1000 V AC) 100 A | |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V) 12 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 4 kA |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| 04 (Left Side) | |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 6 N·m |
| Technical UL/CSA | |
| Tightening Torque | acc. IEC 60947-1 6 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC301322D0201 |
| FIMKO Certificate | 1SCC301322D0201 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
