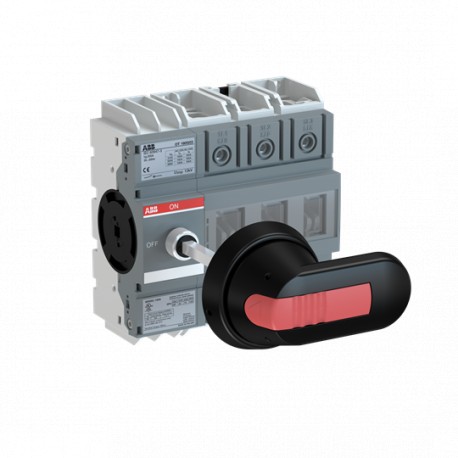

ABB 1SCA162953R1001 1SCA162953R1001 ABB Int. Sec. for 800-1000VAC OTHV160G03P View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA162953R1001 ABB Int. Sec. for 800-1000VAC OTHV160G03P

1SCA162953R1001

1SCA162953R1001

ABB

1 Pcs.

Int. Sec. for 800-1000VAC OTHV160G03P OTHV160G03P SWITCH DISCONNECTOR

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This specialized switch accessory component supports medium-voltage electrical installations by providing mechanical connectivity and structural integrity within switchgear assemblies. Engineers integrate these parts to configure complex switching systems according to project parameters. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 1SCC011021D0201
  • RoHS Declaration: 1SCC011020D0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Toxic Substances Control Act - TSCA: 1SCC011025D0201
  • Data Sheet, Technical Information: 9AKK108469A0610
  • Instructions and Manuals: 1SCC301089M0204
  • Mechanical Drawings: OT160G3_model.igs
  • Degree of Protection: Front IP20
  • Pollution Degree: 3
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85365080
  • Country or Territory of Origin: Finland
  • Product Net Width: 123 mm
  • Product Net Height: 130 mm
  • Product Net Depth / Length: 73 mm

More info

▲
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information9AKK108469A0610
Instructions and Manuals1SCC301089M0204
Mechanical DrawingsOT160G3_model.igs
Environmental
Degree of ProtectionFront IP20
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width123 mm
Product Net Height130 mm
Product Net Depth / Length73 mm
Product Net Weight0.9 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width96 mm
Package Level 1 Depth / Length160 mm
Package Level 1 Height244 mm
Package Level 1 Gross Weight1.0 kg
Package Level 1 EAN6417019929057
Technical
Cable Cross-SectionCu 10...70 mm²
Conventional Free-air Thermal Current (Ith)160 A
Conventional Thermal Current (Ithe)160 A
Degree of ProtectionFront IP20
Handle ColorBlack
Handle Length65 mm
Handle TypePistol type handle included
Mechanical DurabilityNr. Operations 20000
Mounting TypeBase mounting
Number of Poles3P
Operating ModeFront
Pollution Degree3
Power Lossat Rated Operating Conditions per Pole 6.5 W
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)acc. to IEC 60947-1 1000 V
Rated Operational Current AC-21A (Ie)(800 V AC) 160 A
(1000 V AC) 125 A
Rated Operational Current AC-22A (Ie)(800 V) 125 A
(1000 V AC) 100 A
Rated Operational VoltageMain Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)(1000 V) 12 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 4 kA
StandardsIEC 60947-3
Switches Operating MechanismMechanism at the End of the Switch
03 (Left Side)
Terminal TypeScrew Terminals
Tightening Torqueacc. IEC 60947-1 6 N·m
Technical UL/CSA
Tightening Torqueacc. IEC 60947-1 6 N·m
Certificates and Declarations
Declaration of Conformity - CE1SCC301322D0201
FIMKO Certificate1SCC301322D0201
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122233
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
