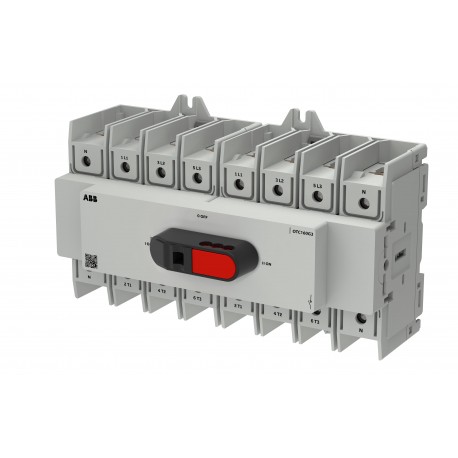

1SCA162752R1001 ABB OT Plus Switch OTC160G3-4BS

1SCA162752R1001

162752

ABB

1 Pcs.

OT Plus Switch OTC160G3-4BS OTC160G3-4BS CHANGE-OVER SWITCH

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC011025D0201
Environmental
Degree of ProtectionFront IP20
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85363090
Country or Territory of OriginFinland
Dimensions
Product Net Width123 mm
Product Net Height191 mm
Product Net Depth / Length95 mm
Product Net Weight1.100 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width102 mm
Package Level 1 Depth / Length195 mm
Package Level 1 Height127 mm
Package Level 1 EAN6417019928203
Technical
Connecting Capacity Main CircuitFlexible with Ferrule 1/2x Cu 2.5…4 mm²
Solid 1/2x Cu 2.5…6 mm²
Flexible 1x Cu 2.5…70 mm²
Flexible 2x Cu 2.5…25 mm²
Stranded 1x Cu 2.5…70 mm²
Stranded 2x Cu 2.5…25 mm²
Conventional Free-air Thermal Current (Ith)160 A
Conventional Thermal Current (Ithe)160 A
Fourth Pole PositionRight Side
Left Side
Fourth Pole TypeSwitched - Simultaneous Function
Switched - Late-break and Early-make
Handle ColorBlack
Handle Length57 mm
Handle TypeKnob
Lock TypePadlockable
Maximum Mounted Auxiliary Contacts2 NO, 2 NC
Mounting TypeBase/DIN mounting
Number of Poles4P
Operating ModeFront
Position of Line TerminalsTop In - Bottom Out
Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 7.3 W
Rated Conditional Short-Circuit Current (Inc)(80 A fuse, 690 V) 25 kA
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)acc. to IEC 60947-1 800 V
Rated Operational Current AC-21A (Ie)(415 V) 160 A
(690 V) 125 A
(800 V) 80 A
Rated Operational Current AC-22A (Ie)(415 V) 160 A
(690 V) 125 A
(800 V) 63 A
Rated Operational Current AC-23A (Ie)(415 V) 125 A
(690 V) 63 A
Rated Operational Power AC-23A (Pe)(415 V) 55 kW
(690 V) 55 kW
Rated Operational VoltageMain Circuit 800 V
Rated Short-Circuit Making Capacity (Icm)(690 V) 4.8 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 2.5 kA
for 0.2 s 3.2 kA
Recommended Screw DriverMain Circuit Hexagon 4
Special FunctionsNo
StandardsIEC60947-3
Switches Operating MechanismMechanism on Top of the Switch
Terminal TypeScrew Terminals
Tightening Torqueacc. IEC 60947-1 6 N·m
Wire Stripping LengthMain Circuit 16-18 mm
Main Circuit 0.63-0.71 in
Technical UL/CSA
Tightening Torque UL/CSAUL 53 N·m
Certificates and Declarations
CCC CertificateCCC OTC30-160G3
Declaration of Conformity - CE1SCC303136D2701
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122233
IDEA Granular Category Code (IGCC)5290 >> Disconnect switch
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)36
E-Number (Norway)4384826

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
