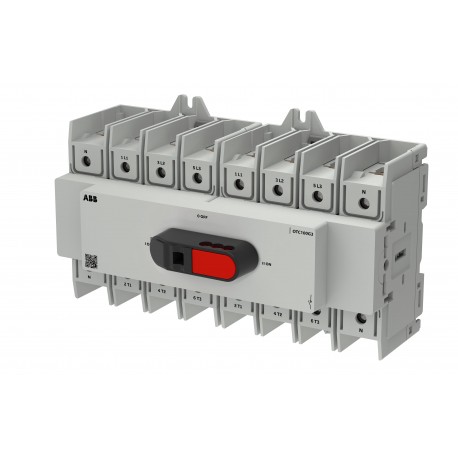

1SCA162748R1001 ABB OT Plus Switch OTC100G3-4BS
1SCA162748R1001
162748
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
1SCA162748R1001 ABB OT Plus Switch OTC100G3-4BS is an advanced modular switch disconnector designed to control circuit isolation in commercial and industrial electrical enclosures. These modular switches offer reliable load switching performance and flexible integration into modern control panel assemblies. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Degree of Protection: Front IP20
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85363030
- Country or Territory of Origin: Finland
- Product Net Width: 123 mm
- Product Net Height: 191 mm
- Product Net Depth / Length: 95 mm
- Product Net Weight: 1.100 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 102 mm
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Environmental | |
| Degree of Protection | Front IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363030 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 123 mm |
| Product Net Height | 191 mm |
| Product Net Depth / Length | 95 mm |
| Product Net Weight | 1.100 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 102 mm |
| Package Level 1 Depth / Length | 195 mm |
| Package Level 1 Height | 127 mm |
| Package Level 1 EAN | 6417019928166 |
| Technical | |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1/2x Cu 2.5…4 mm² |
| Solid 1/2x Cu 2.5…6 mm² | |
| Flexible 1x Cu 2.5…70 mm² | |
| Flexible 2x Cu 2.5…25 mm² | |
| Stranded 1x Cu 2.5…70 mm² | |
| Stranded 2x Cu 2.5…25 mm² | |
| Conventional Free-air Thermal Current (Ith) | 100 A |
| Conventional Thermal Current (Ithe) | 100 A |
| Fourth Pole Position | Right Side |
| Left Side | |
| Fourth Pole Type | Switched - Simultaneous Function |
| Switched - Late-break and Early-make | |
| Handle Color | Black |
| Handle Length | 57 mm |
| Handle Type | Knob |
| Lock Type | Padlockable |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounting Type | Base/DIN mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out |
| Bottom In - Top Out | |
| Power Loss | at Rated Operating Conditions per Pole 3.7 W |
| Rated Conditional Short-Circuit Current (Inc) | (80 A fuse, 690 V) 25 kA |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-1 800 V |
| Rated Operational Current AC-21A (Ie) | (415 V) 100 A |
| (690 V) 100 A | |
| (800 V) 80 A | |
| Rated Operational Current AC-22A (Ie) | (415 V) 100 A |
| (690 V) 100 A | |
| (800 V) 45 A | |
| Rated Operational Current AC-23A (Ie) | (415 V) 100 A |
| (690 V) 63 A | |
| Rated Operational Power AC-23A (Pe) | (415 V) 55 kW |
| (690 V) 55 kW | |
| Rated Operational Voltage | Main Circuit 800 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 4.8 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kA |
| for 0.2 s 3.2 kA | |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Special Functions | No |
| Standards | IEC60947-3 |
| UL98 | |
| CSA C22.2 No.4 | |
| Switches Operating Mechanism | Mechanism on Top of the Switch |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 6 N·m |
| Wire Stripping Length | Main Circuit 16-18 mm |
| Main Circuit 0.63-0.71 in | |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | 600 V |
| Ampere Rating | 100 A |
| Horsepower Rating UL/CSA | (110 ... 120 V AC) Single Phase 5 Hp |
| (240 V AC) Single Phase 15 Hp | |
| (440 ... 480 V AC) Single Phase 25 Hp | |
| (550 ... 600 V AC) Single Phase 30 Hp | |
| (110 ... 120 V AC) Three Phase 10 Hp | |
| (240 V AC) Three Phase 30 Hp | |
| (440 ... 480 V AC) Three Phase 50 Hp | |
| (550 ... 600 V AC) Three Phase 60 Hp | |
| Wire Size | 1x 12-2/0 AWG |
| 2x 12-4 AWG | |
| Tightening Torque UL/CSA | UL 53 N·m |
| Certificates and Declarations | |
| CCC Certificate | CCC OTC30-160G3 |
| Declaration of Conformity - CE | 1SCC303136D2701 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 36 |
| E-Number (Norway) | 4384822 |
