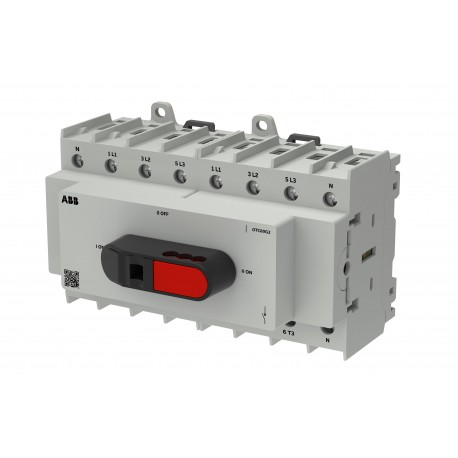

ABB 1SCA162738R1001 1SCA162738R1001 ABB OT Plus Switch OTC80G2-4BS View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA162738R1001 ABB OT Plus Switch OTC80G2-4BS

1SCA162738R1001

162738

ABB

1 Pcs.

OT Plus Switch OTC80G2-4BS OTC80G2-4BS CHANGE-OVER SWITCH

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC011025D0201
Environmental
Degree of ProtectionFront IP20
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85363030
Country or Territory of OriginFinland
Dimensions
Product Net Width91.5 mm
Product Net Height140 mm
Product Net Depth / Length96 mm
Product Net Weight0.704 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width100 mm
Package Level 1 Depth / Length144 mm
Package Level 1 Height96 mm
Package Level 1 EAN6417019928067
Technical
Connecting Capacity Main CircuitFlexible with Ferrule 1/2x Cu 1.5…4 mm²
Solid 1/2x Cu 1.5…6 mm²
Flexible 1x Cu 1.5…35 mm²
Flexible 2x Cu 1.5…16 mm²
Stranded 1x Cu 1.5…35 mm²
Stranded 2x Cu 1.5…16 mm²
Conventional Free-air Thermal Current (Ith)80 A
Conventional Thermal Current (Ithe)80 A
Fourth Pole PositionRight Side
Left Side
Fourth Pole TypeSwitched - Simultaneous Function
Switched - Late-break and Early-make
Handle ColorBlack
Handle Length57 mm
Handle TypeKnob
Lock TypePadlockable
Maximum Mounted Auxiliary Contacts2 NO, 2 NC
Mounting TypeBase/DIN mounting
Number of Poles4P
Operating ModeFront
Position of Line TerminalsTop In - Bottom Out
Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 3.4 W
Rated Conditional Short-Circuit Current (Inc)(80 A fuse, 690 V) 50 kA
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)acc. to IEC 60947-1 800 V
Rated Operational Current AC-21A (Ie)(415 V) 80 A
(690 V) 80 A
Rated Operational Current AC-22A (Ie)(415 V) 80 A
(690 V) 80 A
Rated Operational Current AC-23A (Ie)(415 V) 65 A
(690 V) 40 A
Rated Operational Power AC-23A (Pe)(415 V) 45 kW
(690 V) 37 kW
Rated Operational VoltageMain Circuit 800 V
Rated Short-Circuit Making Capacity (Icm)(690 V) 3.5 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 1.5 kA
for 0.2 s 2.5 kA
Recommended Screw DriverMain Circuit Pozidriv 2
Special FunctionsNo
StandardsIEC60947-3
UL60947-4-1
CSA C22.2 No.14
Switches Operating MechanismMechanism on Top of the Switch
Terminal TypeScrew Terminals
Tightening Torqueacc. IEC 60947-1 2 N·m
Wire Stripping LengthMain Circuit 13-16 mm
Main Circuit 0.51-0.63 in
Technical UL/CSA
Maximum Operating Voltage UL/CSA600 V
Ampere Rating80 A
Horsepower Rating UL/CSA(110 ... 120 V AC) Single Phase 2 Hp
(240 V AC) Single Phase 10 Hp
(440 ... 480 V AC) Single Phase 20 Hp
(550 ... 600 V AC) Single Phase 20 Hp
(110 ... 120 V AC) Three Phase 5 Hp
(240 V AC) Three Phase 20 Hp
(440 ... 480 V AC) Three Phase 40 Hp
(550 ... 600 V AC) Three Phase 40 Hp
Wire Size1x 16-2 AWG
2x 16-8 AWG
Tightening Torque UL/CSAUL 18 N·m
Certificates and Declarations
CCC CertificateCCC OTC63-80G2
Declaration of Conformity - CE1SCC303137D2701
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122233
IDEA Granular Category Code (IGCC)5290 >> Disconnect switch
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)36
E-Number (Norway)4384812
