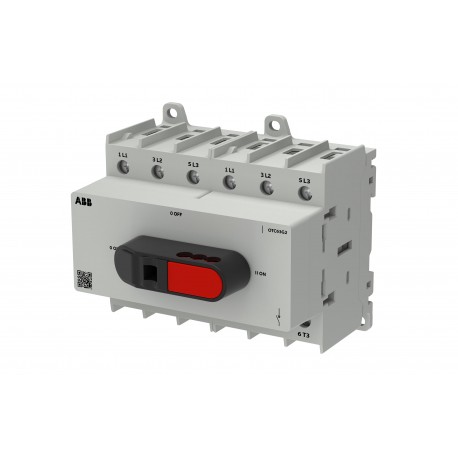

1SCA162734R1001 ABB OT Plus Switch OTC63G2-3BS
1SCA162734R1001
162734
ABB
1 Pcs.
OT Plus Switch OTC63G2-3BS
OTC63G2-3BS CHANGE-OVER SWITCH
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Part of the modular OT Plus series, this Abb 1SCA162734R1001 switch disconnector provides reliable load breaking and isolation for industrial control panels. Compact disconnect switches are routinely integrated into machinery enclosures to ensure safe local power control.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Degree of Protection: Front IP20
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85363030
- Country or Territory of Origin: Finland
- Product Net Width: 91.5 mm
- Product Net Height: 105 mm
- Product Net Depth / Length: 96 mm
- Product Net Weight: 0.564 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 100 mm
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Environmental | |
| Degree of Protection | Front IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363030 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 91.5 mm |
| Product Net Height | 105 mm |
| Product Net Depth / Length | 96 mm |
| Product Net Weight | 0.564 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 100 mm |
| Package Level 1 Depth / Length | 109 mm |
| Package Level 1 Height | 96 mm |
| Package Level 1 EAN | 6417019928029 |
| Technical | |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1/2x Cu 1.5…4 mm² |
| Solid 1/2x Cu 1.5…6 mm² | |
| Flexible 1x Cu 1.5…35 mm² | |
| Flexible 2x Cu 1.5…16 mm² | |
| Stranded 1x Cu 1.5…35 mm² | |
| Stranded 2x Cu 1.5…16 mm² | |
| Conventional Free-air Thermal Current (Ith) | 63 A |
| Conventional Thermal Current (Ithe) | 63 A |
| Handle Color | Black |
| Handle Length | 57 mm |
| Handle Type | Knob |
| Lock Type | Padlockable |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounting Type | Base/DIN mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out |
| Bottom In - Top Out | |
| Power Loss | at Rated Operating Conditions per Pole 2.2 W |
| Rated Conditional Short-Circuit Current (Inc) | (80 A fuse, 690 V) 50 kA |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-1 800 V |
| Rated Operational Current AC-21A (Ie) | (415 V) 63 A |
| (690 V) 63 A | |
| Rated Operational Current AC-22A (Ie) | (415 V) 63 A |
| (690 V) 63 A | |
| Rated Operational Current AC-23A (Ie) | (415 V) 63 A |
| (690 V) 32 A | |
| Rated Operational Power AC-23A (Pe) | (415 V) 30 kW |
| (690 V) 30 kW | |
| Rated Operational Voltage | Main Circuit 800 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 3.5 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 1.5 kA |
| for 0.2 s 2.5 kA | |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Special Functions | No |
| Standards | IEC60947-3 |
| UL60947-4-1 | |
| CSA C22.2 No.14 | |
| Switches Operating Mechanism | Mechanism on Top of the Switch |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 2 N·m |
| Wire Stripping Length | Main Circuit 13-16 mm |
| Main Circuit 0.51-0.63 in | |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | 600 V |
| Ampere Rating | 63 A |
| Horsepower Rating UL/CSA | (110 ... 120 V AC) Single Phase 2 Hp |
| (240 V AC) Single Phase 7.5 Hp | |
| (440 ... 480 V AC) Single Phase 15 Hp | |
| (550 ... 600 V AC) Single Phase 15 Hp | |
| (110 ... 120 V AC) Three Phase 5 Hp | |
| (240 V AC) Three Phase 15 Hp | |
| (440 ... 480 V AC) Three Phase 30 Hp | |
| (550 ... 600 V AC) Three Phase 30 Hp | |
| Wire Size | 1x 16-2 AWG |
| 2x 16-8 AWG | |
| Tightening Torque UL/CSA | UL 18 N·m |
| Certificates and Declarations | |
| CCC Certificate | CCC OTC63-80G2 |
| Declaration of Conformity - CE | 1SCC303137D2701 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 36 |
| E-Number (Norway) | 4384809 |
