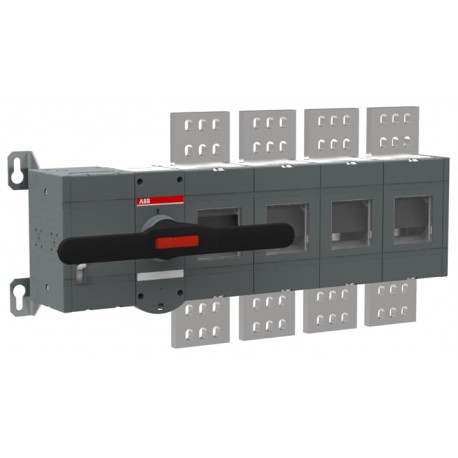

Int. Sec. Mot.DC-20B OTM2500E4M230V-135 OTM2500E4M230V-135 Motorized Disconnector

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Int. Sec. Mot.DC-20B OTM2500E4M230V-135 built by Abb is a motorized switch-disconnector designed for automated remote control and isolation of heavy-duty direct current circuits. Industrial facilities incorporate motorized disconnects into large-scale renewable energy installations and high-power DC distribution grids.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 1SCC301240D0201
  • RoHS Declaration: 1SCC301239D0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Toxic Substances Control Act - TSCA: 1SCC301321D0201
  • Data Sheet, Technical Information: 1SCC301023C0201
  • Instructions and Manuals: 1SCC301104M0201
  • Mechanical Drawings: otm2500e4_.stp
  • Degree of Protection: Front IP00
  • Pollution Degree: 3
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85353010
  • Country or Territory of Origin: Finland
  • Product Frame Size: OTM2500-135
  • Product Net Width: 770.5 mm
  • Product Net Height: 376.4 mm
  • Product Net Depth / Length: 153 mm

More info

▲
Material Compliance
REACH Declaration1SCC301240D0201
RoHS Declaration1SCC301239D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC301321D0201
Popular Downloads
Data Sheet, Technical Information1SCC301023C0201
Instructions and Manuals1SCC301104M0201
Mechanical Drawingsotm2500e4_.stp
1SCC303656F0001
1SCC303657F0001
Environmental
Degree of ProtectionFront IP00
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85353010
Country or Territory of OriginFinland
China
Dimensions
Product Frame SizeOTM2500-135
Product Net Width770.5 mm
30.3 in
Product Net Height376.4 mm
14.8 in
Product Net Depth / Length153 mm
6 in
Product Net Weight40.2 kg
88.6 lb
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width590 mm
23.2 in
Package Level 1 Depth / Length790 mm
31.1 in
Package Level 1 Height210 mm
8.3 in
Package Level 1 Gross Weight57.3 kg
126.3 lb
Package Level 1 EAN6417019926865
Technical
Connection ConfigurationConnection type 2 or 3
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 2500 A
Θ = 40 °C 4000 A
Conventional Thermal Current (Ithe)Fully Enclosed 2500 A
Fully Enclosed 4000 A
Degree of ProtectionFront IP00
Handle ColorBlack
Handle Length400 mm
15.7 in
Handle TypeDirect mounted pistol type handle
Mechanical Durability600 cycle
Motor Operational Voltage220 ... 240 V AC
Mounting TypeBase mounting
Number of Circuits1
2
Number of Poles4P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out
Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 85 W
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1500 V
Rated Operational Current DC-20B(1500 V DC) 2500 A
(1500 V DC) 4000 A
Rated Short-time Withstand Current Low Voltage (Icw)for 0.3 s 80 kA
for 0.3 s 100 kA
Rated Voltage (Ur)1500 V
Special FunctionsNo
StandardsIEC 60947-1, -3
Switches Operating MechanismMechanism at the End of the Switch
04 (Left Side)
Terminal TypeLug terminals
Terminal Width100 mm
3.94 in
UtilizationEnergy Storage System (ESS)
Utilization CategoryConnecting and disconnecting under no-load conditions - occasional actuation (DC-20B)
Certificates and Declarations
CCC Certificate2023980302000100
Declaration of Conformity - CE1SCC301229D2701
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC004963 - Switch disconnector (DC)
eClassV14.0 : 27371403
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
