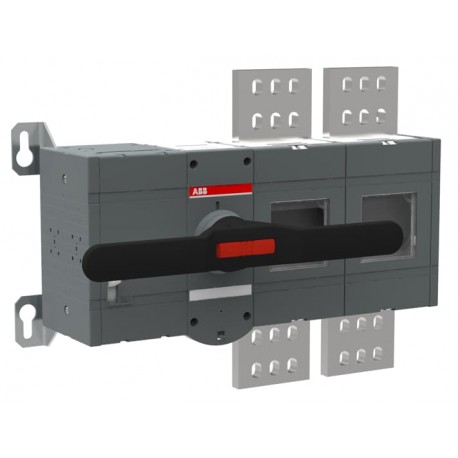

1SCA162703R1001 ABB Int. Sec. Mot.DC-20B OTM2500E2M230V-135
1SCA162703R1001
1SCA162703R1001
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB Int. Sec. Mot.DC-20B OTM2500E2M230V-135 is a specialized industrial switching device utilized for safely interrupting and isolating electrical circuits in heavy-duty power distribution environments. These components provide reliable manual or motorized control during maintenance operations to ensure safety across complex machinery setups.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 1SCC301240D0201
- RoHS Declaration: 1SCC301239D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 1SCC301321D0201
- Data Sheet, Technical Information: 1SCC301023C0201
- Instructions and Manuals: 1SCC301104M0201
- Mechanical Drawings: 9AKK108468A2096
- Degree of Protection: Front IP00
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85353010
- Country or Territory of Origin: Finland
- Product Frame Size: OTM2500-135
- Product Net Width: 518.5 mm
- Product Net Height: 376.4 mm
- Product Net Depth / Length: 153 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 1SCC301240D0201 |
| RoHS Declaration | 1SCC301239D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC301321D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301023C0201 |
| Instructions and Manuals | 1SCC301104M0201 |
| Mechanical Drawings | 9AKK108468A2096 |
| 1SCC308342F0201 | |
| 1SCC308343F0201 | |
| Environmental | |
| Degree of Protection | Front IP00 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85353010 |
| Country or Territory of Origin | Finland |
| China | |
| Dimensions | |
| Product Frame Size | OTM2500-135 |
| Product Net Width | 518.5 mm |
| 20.4 in | |
| Product Net Height | 376.4 mm |
| 14.8 in | |
| Product Net Depth / Length | 153 mm |
| 6 in | |
| Product Net Weight | 24.2 kg |
| 53.4 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 407 mm |
| 16 in | |
| Package Level 1 Depth / Length | 619 mm |
| 24.4 in | |
| Package Level 1 Height | 190 mm |
| 7.5 in | |
| Package Level 1 Gross Weight | 26 kg |
| 57.3 lb | |
| Package Level 1 EAN | 6417019926858 |
| Technical | |
| Connection Configuration | Connection type 1 |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 2500 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 2500 A |
| Degree of Protection | Front IP00 |
| Handle Color | Black |
| Handle Length | 400 mm |
| 15.7 in | |
| Handle Type | Direct mounted pistol type handle |
| Mechanical Durability | 600 cycle |
| Motor Operational Voltage | 220 ... 240 V AC |
| Mounting Type | Base mounting |
| Number of Circuits | 1 |
| Number of Poles | 2P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Bottom In - Top Out | |
| Power Loss | at Rated Operating Conditions per Pole 85 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1500 V |
| Rated Operational Current DC-20B | (1500 V DC) 2500 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 0.3 s 80 kA |
| Rated Voltage (Ur) | 1500 V |
| Special Functions | No |
| Standards | IEC 60947-1, -3 |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| 02 (Left Side) | |
| Terminal Type | Lug terminals |
| Terminal Width | 100 mm |
| 3.94 in | |
| Utilization | Energy Storage System (ESS) |
| Utilization Category | Connecting and disconnecting under no-load conditions - occasional actuation (DC-20B) |
| Certificates and Declarations | |
| CCC Certificate | 2023980302000100 |
| Declaration of Conformity - CE | 1SCC301229D2701 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC004963 - Switch disconnector (DC) |
| eClass | V14.0 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
