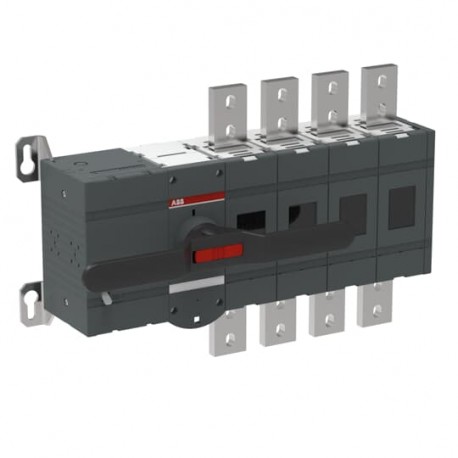

1SCA162702R1001 ABB Int. Sec. Mot.DC-20B OTM1600E4M230V-135
1SCA162702R1001
1SCA162702R1001
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb 1SCA162702R1001 ABB Int. Sec. Mot.DC-20B OTM1600E4M230V-135 is a motorized direct current switch configured to handle automated switching tasks in demanding industrial environments. Motorized disconnectors enable remote operation and reliable power control for heavy electrical infrastructure without requiring manual intervention at the panel front.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 1SCC301240D0201
- RoHS Declaration: 1SCC301239D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 1SCC301321D0201
- Data Sheet, Technical Information: 1SCC301023C0201
- Instructions and Manuals: 1SCC301104M0201
- Mechanical Drawings: otm1600e4_.stp
- Degree of Protection: Front IP00
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85353010
- Country or Territory of Origin: Finland
- Product Frame Size: OTM1600-135
- Product Net Width: 586.5 mm
- Product Net Height: 372 mm
- Product Net Depth / Length: 153 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 1SCC301240D0201 |
| RoHS Declaration | 1SCC301239D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC301321D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301023C0201 |
| Instructions and Manuals | 1SCC301104M0201 |
| Mechanical Drawings | otm1600e4_.stp |
| 1SCC303484F0001 | |
| 1SCC303485F0001 | |
| Environmental | |
| Degree of Protection | Front IP00 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85353010 |
| Country or Territory of Origin | Finland |
| China | |
| Dimensions | |
| Product Frame Size | OTM1600-135 |
| Product Net Width | 586.5 mm |
| 23.1 in | |
| Product Net Height | 372 mm |
| 14.6 in | |
| Product Net Depth / Length | 153 mm |
| 6 in | |
| Product Net Weight | 30 kg |
| 66.1 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 435 mm |
| 17.1 in | |
| Package Level 1 Depth / Length | 673 mm |
| 26.5 in | |
| Package Level 1 Height | 215 mm |
| 8.5 in | |
| Package Level 1 Gross Weight | 32 kg |
| 70.5 lb | |
| Package Level 1 EAN | 6417019926841 |
| Technical | |
| Connection Configuration | Connection type 2 or 3 |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 1600 A |
| Θ = 40 °C 2500 A | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 1600 A |
| Fully Enclosed 2500 A | |
| Degree of Protection | Front IP00 |
| Handle Color | Black |
| Handle Length | 400 mm |
| 15.7 in | |
| Handle Type | Direct mounted pistol type handle |
| Mechanical Durability | 600 cycle |
| Motor Operational Voltage | 220 ... 240 V AC |
| Mounting Type | Base mounting |
| Number of Circuits | 1 |
| 2 | |
| Number of Poles | 4P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Bottom In - Top Out | |
| Power Loss | at Rated Operating Conditions per Pole 48 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1500 V |
| Rated Operational Current DC-20B | (1500 V DC) 1600 A |
| (1500 V DC) 2500 A | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 0.3 s 36 kA |
| for 0.3 s 50 kA | |
| Rated Voltage (Ur) | 1500 V |
| Special Functions | No |
| Standards | IEC 60947-1, -3 |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| 04 (Left Side) | |
| Terminal Type | Lug terminals |
| Terminal Width | 50 mm |
| 1.97 in | |
| Utilization | Energy Storage System (ESS) |
| Utilization Category | Connecting and disconnecting under no-load conditions - occasional actuation (DC-20B) |
| Certificates and Declarations | |
| CCC Certificate | 2023980302000100 |
| Declaration of Conformity - CE | 1SCC301229D2701 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC004963 - Switch disconnector (DC) |
| eClass | V14.0 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
