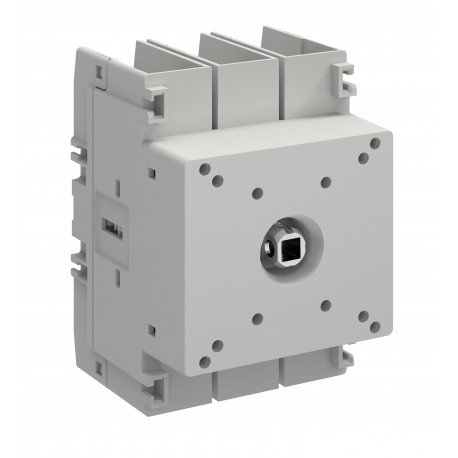

1SCA162533R1001 ABB Int. OT Plus Disconnector OT30G3-3DS
1SCA162533R1001
162533
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
1SCA162533R1001 ABB Int. OT Plus Disconnector OT30G3-3DS serves as a manual switching device utilized to completely isolate electrical circuits from power sources. Panel builders incorporate disconnect switches into control panels to ensure safe equipment isolation during routine maintenance and system troubleshooting. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- End Of Life Disassembling Instructions: 1SCC301146M0201
- Environmental Information: 1SCC301334D0201
- Environmental Product Declaration - EPD: 1SCC301334D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Data Sheet, Technical Information: 9AKK108468A5537
- Instructions and Manuals: 1SCC301127M0201
- Mechanical Drawings: OT30_160G3_3DS.stp
- Degree of Protection: Front IP20
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85363030
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| End Of Life Disassembling Instructions | 1SCC301146M0201 |
| Environmental Information | 1SCC301334D0201 |
| Environmental Product Declaration - EPD | 1SCC301334D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK108468A5537 |
| 1SCC301020C0201 | |
| Instructions and Manuals | 1SCC301127M0201 |
| Mechanical Drawings | OT30_160G3_3DS.stp |
| Environmental | |
| Degree of Protection | Front IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363030 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 70 mm |
| Product Net Height | 102.5 mm |
| Product Net Depth / Length | 70 mm |
| Product Net Weight | 0.412 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 76 mm |
| Package Level 1 Depth / Length | 109 mm |
| Package Level 1 Height | 74 mm |
| Package Level 1 Gross Weight | 0.462 kg |
| Package Level 1 EAN | 6417019925660 |
| Package Level 2 Units | box 10 piece |
| Package Level 2 Width | 398 mm |
| Package Level 2 Depth / Length | 280 mm |
| Package Level 2 Height | 93 mm |
| Package Level 2 Gross Weight | 4.62 kg |
| Technical | |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1/2x Cu 2.5…4 mm² |
| Solid 1/2x Cu 2.5…6 mm² | |
| Flexible 1x Cu 2.5…70 mm² | |
| Flexible 2x Cu 2.5…25 mm² | |
| Stranded 1x Cu 2.5…70 mm² | |
| Stranded 2x Cu 2.5…25 mm² | |
| Conventional Free-air Thermal Current (Ith) | 40 A |
| Conventional Thermal Current (Ithe) | 40 A |
| Handle Type | Handle Not Included |
| Maximum Mounted Auxiliary Contacts | 4 NO, 4 NC |
| Mechanical Durability | Nr. Operations 100000 |
| Mounting Type | Door mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out |
| Bottom In - Top Out | |
| Power Loss | at Rated Operating Conditions per Pole 0.6 W |
| Rated Conditional Short-Circuit Current (Inc) | (80 A fuse, 690 V) 50 kA |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-1 800 V |
| Rated Operational Current AC-21A (Ie) | (415 V) 40 A |
| (690 V) 40 A | |
| Rated Operational Current AC-22A (Ie) | (415 V) 40 A |
| (690 V) 40 A | |
| Rated Operational Current AC-23A (Ie) | (415 V) 40 A |
| (690 V) 40 A | |
| Rated Operational Power AC-23A (Pe) | (415 V) 18.5 kW |
| (690 V) 37 kW | |
| Rated Operational Voltage | Main Circuit 800 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 4.8 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kA |
| for 0.2 s 3.3 kA | |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Special Functions | No |
| Standards | IEC60947-3 |
| UL98 | |
| CSA C22.2 No.4 | |
| Switches Operating Mechanism | Mechanism on Top of the Switch |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 6 N·m |
| Wire Stripping Length | Main Circuit 16-18 mm |
| Main Circuit 0.63-0.71 in | |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | 600 V |
| Ampere Rating | 30 A |
| Horsepower Rating UL/CSA | (110 ... 120 V AC) Single Phase 2 Hp |
| (240 V AC) Single Phase 5 Hp | |
| (440 ... 480 V AC) Single Phase 10 Hp | |
| (550 ... 600 V AC) Single Phase 15 Hp | |
| (110 ... 120 V AC) Three Phase 5 Hp | |
| (240 V AC) Three Phase 10 Hp | |
| (440 ... 480 V AC) Three Phase 20 Hp | |
| (550 ... 600 V AC) Three Phase 30 Hp | |
| Wire Size | 1x 12-2/0 AWG |
| 2x 12-4 AWG | |
| Tightening Torque UL/CSA | UL 53 lbf·in |
| Certificates and Declarations | |
| CCC Certificate | CCC OT30-160G3 |
| Declaration of Conformity - CE | 1SCC301328D2701 |
| UL Certificate | cULus certificate OT_OTC30-100G3 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3642556 |
| E-Number (Sweden) | 3172176 |
