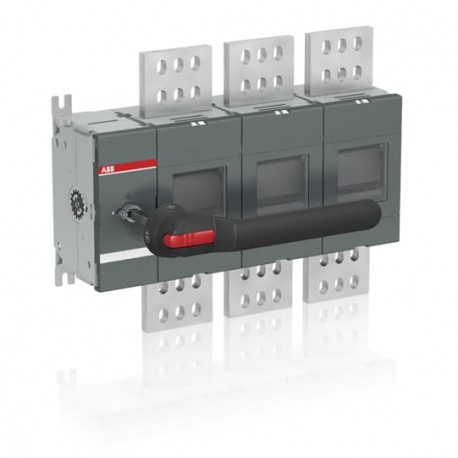

1SCA162446R1001 ABB Int. Sec. for 800-1000VAC OTHV2000E03P
1SCA162446R1001
1SCA162446R1001
ABB
1 Pcs.
Int. Sec. for 800-1000VAC OTHV2000E03P
OTHV2000E03P SWITCH-DISCONNECTOR
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 1SCA162446R1001 ABB Int. Sec. for 800-1000VAC OTHV2000E03P by Abb acts as a specialized mechanical accessory or section designed to support medium-to-high voltage switchgear setups and ensure robust mechanical housing separation.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- End Of Life Disassembling Instructions: 1SCC301121M0201
- Environmental Product Declaration - EPD: 1SCC301304D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Data Sheet, Technical Information: 9AKK108469A0610
- Instructions and Manuals: 1SCC301078M0205
- Mechanical Drawings: 1SCC301516F0001
- Environmental Product Declaration - EPD: 1SCC301304D0201
- Degree of Protection: Front IP00
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Country or Territory of Origin: Finland
More info
▲| ABB EcoSolutions | |
|---|---|
| End Of Life Disassembling Instructions | 1SCC301121M0201 |
| Environmental Product Declaration - EPD | 1SCC301304D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK108469A0610 |
| Instructions and Manuals | 1SCC301078M0205 |
| Mechanical Drawings | 1SCC301516F0001 |
| 1SCC301515F0001 | |
| OT2500E03.igs | |
| Environmental Product Declaration - EPD | 1SCC301304D0201 |
| Environmental | |
| Degree of Protection | Front IP00 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 472.5 mm |
| Product Net Height | 376.5 mm |
| Product Net Depth / Length | 145.5 mm |
| Product Net Weight | 25.8 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 190 mm |
| Package Level 1 Depth / Length | 407 mm |
| Package Level 1 Height | 619 mm |
| Package Level 1 Gross Weight | 27.7 kg |
| Package Level 1 EAN | 6417019923574 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | 2000 A |
| Conventional Thermal Current (Ithe) | 2000 A |
| Degree of Protection | Front IP00 |
| Handle Color | Black |
| Handle Length | 274 mm |
| Handle Type | Pistol type handle included |
| Mechanical Durability | Nr. Operations 6000 |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Power Loss | at Rated Operating Conditions per Pole 55 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-1 1000 V |
| Rated Operational Current AC-21B (Ie) | (800 V) 2000 A |
| Rated Operational Current AC-22B (Ie) | (800 V) 2000 A |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V) 176 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 55 kA |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| 03 (Left Side) | |
| Terminal Type | Lug terminals |
| Terminal Width | 100 mm |
| Tightening Torque | acc. IEC 60947-1 50 … 75 N·m |
| Technical UL/CSA | |
| Tightening Torque | acc. IEC 60947-1 50 … 75 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC301327D0201 |
| FIMKO Certificate | 1SCC301327D0201 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
