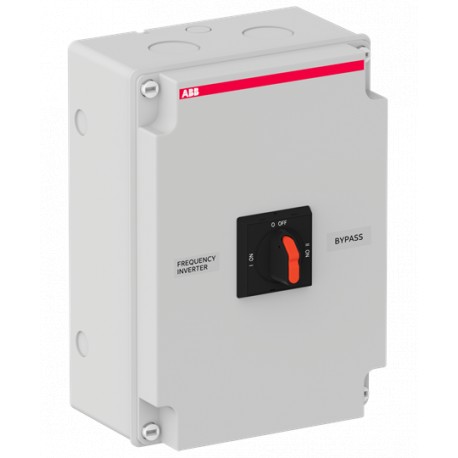

1SCA162084R1001 ABB Int. Bypass disconnector in OTDCP25YD box
1SCA162084R1001
1SCA162084R1001
ABB
1 Pcs.
Int. Bypass disconnector in OTDCP25YD box
OTDCP25YD ENCL. BY-PASS SWITCH-DISCONNECTOR
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC342006B0201 |
| Instructions and Manuals | 1SCC340177M0201 |
| Environmental | |
| Degree of Protection | IP65 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Estonia |
| Dimensions | |
| Product Net Width | 300 mm |
| 11.81 in | |
| Product Net Height | 230 mm |
| 9.06 in | |
| Product Net Depth / Length | 136 mm |
| 5.35 in | |
| Product Net Weight | 2.392 kg |
| 5.27 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 230 mm |
| 9.05 in | |
| Package Level 1 Depth / Length | 315 mm |
| 12.4 in | |
| Package Level 1 Height | 208 mm |
| 8.18 in | |
| Package Level 1 Gross Weight | 2.793 kg |
| 6.15 lb | |
| Package Level 1 EAN | 6417019921556 |
| Technical | |
| Cable Outlets Per Side | 2X Ø40.5+ Ø20.5/ 2X Ø40.5+ Ø20.5 |
| Conventional Thermal Current (Ithe) | Fully Enclosed 25 A |
| Degree of Protection | IP65 |
| Distance Between Phases | Standard |
| Handle Color | Black |
| Handle Type | Handle and shaft included |
| Number of Poles | 6P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Rated Operational Current AC-23A (Ie) | (400 V) 25 A |
| Rated Operational Voltage | Main Circuit 480 V |
| Switches Operating Mechanism | On the Front of the Switch |
| Transition Type | Bypass |
| Certificates and Declarations | |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Rated operating voltage (EF001435) | 480 V |
| Number of poles (EF001391) | 6 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Built-in device plug-in technique |
| Suitable for front mounting 4-hole (EF007247) | Yes |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | Black |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Other |
| Degree of protection (IP), front side (EF003118) | IP20 |
| Degree of protection (NEMA) (EF011959) | 1 |
