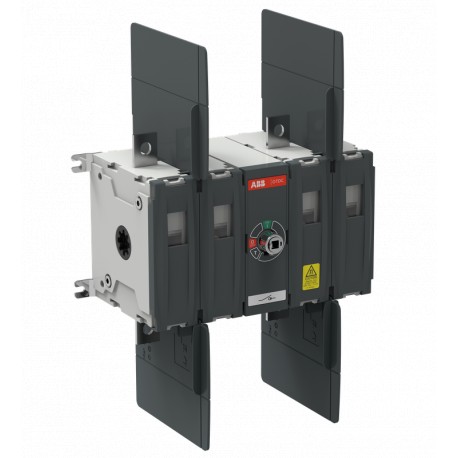

1SCA161985R1001 ABB Disconnector Switch CCOTDC160GV22
1SCA161985R1001
161985
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb CCOTDC160GV22 disconnector switch provides reliable electrical isolation for demanding circuit configurations within modern industrial installations. Such switches are normally integrated into control enclosures to safely interrupt load currents and protect downstream assets.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 1SCC301113M0201
- Environmental Product Declaration - EPD: 1SCC301249D0201
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 50,7 %
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC301240D0201
- RoHS Declaration: 1SCC301239D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 1SCC301321D0201
- Data Sheet, Technical Information: 1SCC301022C0201
- Instructions and Manuals: 1SCC301106M0201
- Mechanical Drawings: OTDC100-250_G_22_STP
- Environmental Product Declaration - EPD: 1SCC301249D0201
- Degree of Protection: Front IP20
- Pollution Degree: 2
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC301113M0201 |
| Environmental Product Declaration - EPD | 1SCC301249D0201 |
| Improved Energy Efficiency for Customers | Product Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 50,7 % |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC301240D0201 |
| RoHS Declaration | 1SCC301239D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC301321D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301022C0201 |
| Instructions and Manuals | 1SCC301106M0201 |
| Mechanical Drawings | OTDC100-250_G_22_STP |
| 1SCC307815F0201 | |
| Environmental Product Declaration - EPD | 1SCC301249D0201 |
| Environmental | |
| Degree of Protection | Front IP20 |
| Pollution Degree | 2 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85353010 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Frame Size | S2.0 |
| Product Net Width | 224 mm |
| 8.8 in | |
| Product Net Height | 165 mm |
| 6.5 in | |
| Product Net Depth / Length | 120 mm |
| 4.7 in | |
| Product Net Weight | 3 kg |
| 6.5 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 220 mm |
| 8.7 in | |
| Package Level 1 Depth / Length | 260 mm |
| 10.2 in | |
| Package Level 1 Height | 155 mm |
| 6.1 in | |
| Package Level 1 Gross Weight | 3.3 kg |
| 7.3 lb | |
| Package Level 1 EAN | 6417019920726 |
| Technical | |
| Connection Configuration | Double circuit 4a, 4c |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 160 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Degree of Protection | Front IP20 |
| Handle Type | Handle and shaft not included |
| Mechanical Durability | 10000 cycle |
| Mounting Type | Base mounting |
| Number of Circuits | 2 |
| Number of Poles | 4P |
| Operating Mode | Front |
| Pollution Degree | 2 |
| Position of Line Terminals | Top In - Bottom Out |
| Bottom In - Top Out | |
| Positive Opening Operation Torque (Direct Opening Action) | 6 … 9 N·m |
| Power Loss | at Rated Operating Conditions per Pole 3.1 … 3.5 W |
| Protection Type | Circuit breaker |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1500 V |
| Rated Operational Current DC-21B (Ie) | (1500 V) 160 A |
| Rated Operational Current DC-PV1 | (1500 V) 160 A |
| Rated Operational Current DC-PV2 | (1500 V) 100 A |
| Rated Operational Voltage | 1500 V |
| Rated Short-Circuit Making Capacity (Icm) | (1500 V DC) 10 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | (1500 V DC) 10 kA |
| for 1 s 10 kA | |
| Shaft Diameter | 6 mm |
| 0.24 in | |
| Special Functions | No |
| Standards | IEC 60947-1, -3 |
| Switches Operating Mechanism | Mechanism Between the Poles |
| 22 (Between the Poles) | |
| Terminal Type | Lug terminals |
| Terminal Width | 19.5 mm |
| 0.77 in | |
| Utilization | Photovoltaic |
| Utilization Category | Switching of resistive loads, including moderate overloads - occasional actuation (DC-21B) |
| Switching of single PV string(s) without reverse and overcurrents (DC-PV1) | |
| Switching of several PV string(s) with reverse and overcurrents (DC-PV2) | |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC301242D2701 |
| Declaration of Conformity - UKCA | 1SCC301313D0201 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC004963 - Switch disconnector (DC) |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
