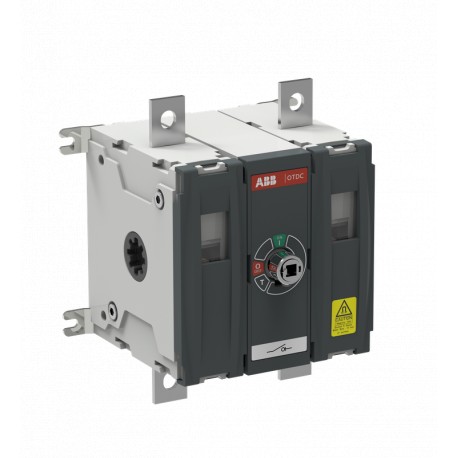

ABB 1SCA161932R1001 1SCA161932R1001 ABB DC Disconnector Switch OTDC100GV11 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA161932R1001 ABB DC Disconnector Switch OTDC100GV11

1SCA161932R1001

161932

ABB

1 Pcs.

DC Disconnector Switch OTDC100GV11 OTDC100GV11 DC Switch-disconnector

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions1SCC301113M0201
Environmental Product Declaration - EPD1SCC301249D0201
Improved Energy Efficiency for CustomersProduct Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 50,7 %
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC301240D0201
RoHS Declaration1SCC301239D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC301321D0201
Popular Downloads
Data Sheet, Technical Information1SCC301022C0201
Instructions and Manuals1SCC301106M0201
Mechanical DrawingsOTDC100-250_G_11_STP
1SCC307811F0201
Environmental Product Declaration - EPD1SCC301249D0201
Environmental
Degree of ProtectionFront IP20
Pollution Degree2
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85353010
Country or Territory of OriginFinland
Dimensions
Product Frame SizeS2.0
Product Net Width146 mm
5.7 in
Product Net Height165 mm
6.5 in
Product Net Depth / Length120 mm
4.7 in
Product Net Weight1.7 kg
3.7 lb
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width170 mm
6.7 in
Package Level 1 Depth / Length190 mm
7.5 in
Package Level 1 Height145 mm
5.7 in
Package Level 1 Gross Weight1.8 kg
4 lb
Package Level 1 EAN6417019920016
Technical
Connection ConfigurationSingle circuit 2a, 2b
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 100 A
Conventional Thermal Current (Ithe)Fully Enclosed 100 A
Degree of ProtectionFront IP20
Handle TypeHandle and shaft not included
Mechanical Durability10000 cycle
Mounting TypeBase mounting
Number of Circuits1
Number of Poles2P
Operating ModeFront
Pollution Degree2
Position of Line TerminalsTop In - Bottom Out
Bottom In - Top Out
Positive Opening Operation Torque (Direct Opening Action)6 … 9 N·m
Power Lossat Rated Operating Conditions per Pole 1.0 … 1.3 W
Protection TypeCircuit breaker
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1500 V
Rated Operational Current DC-21B (Ie)(1500 V) 100 A
Rated Operational Current DC-PV1(1500 V) 100 A
Rated Operational Current DC-PV2(1500 V) 100 A
Rated Operational Voltage1500 V
Rated Short-Circuit Making Capacity (Icm)(1500 V DC) 10 kA
Rated Short-time Withstand Current Low Voltage (Icw)(1500 V DC) 10 kA
for 1 s 10 kA
Shaft Diameter6 mm
0.24 in
Special FunctionsNo
StandardsIEC 60947-1, -3
Switches Operating MechanismMechanism Between the Poles
11 (Between the Poles)
Terminal TypeLug terminals
Terminal Width19.5 mm
0.77 in
UtilizationPhotovoltaic
Utilization CategorySwitching of resistive loads, including moderate overloads - occasional actuation (DC-21B)
Switching of single PV string(s) without reverse and overcurrents (DC-PV1)
Switching of several PV string(s) with reverse and overcurrents (DC-PV2)
Certificates and Declarations
Declaration of Conformity - CE1SCC301242D2701
Declaration of Conformity - UKCA1SCC301313D0201
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC004963 - Switch disconnector (DC)
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

ETIM for 1SCA161932R1001 Low-voltage industrial controls and switchgear (EC000216)
Feature Name Feature Value
Version as main switch (EF006981) Yes
Version as maintenance-/service switch (EF006986) Yes
Version as safety switch (EF006985) No
Version as emergency stop installation (EF006959) No
Version as reversing switch (EF009408) No
Number of switches (EF005586) 1
Rated operating voltage (EF001435) 1500 V
Rated permanent current Iu (EF001389) 100 A
Number of poles (EF001391) 2
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) No
Voltage release optional (EF007491) No
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for front mounting 4-hole (EF007247) Yes
Suitable for front mounting centre (EF007248) No
Suitable for distribution board installation (EF007262) Yes
Suitable for intermediate mounting (EF007264) No
Interlockable (EF006281) No
Type of electrical connection of main circuit (EF006819) Bolt connection
Degree of protection (IP), front side (EF003118) IP20
Degree of protection (NEMA) (EF011959) 1

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
