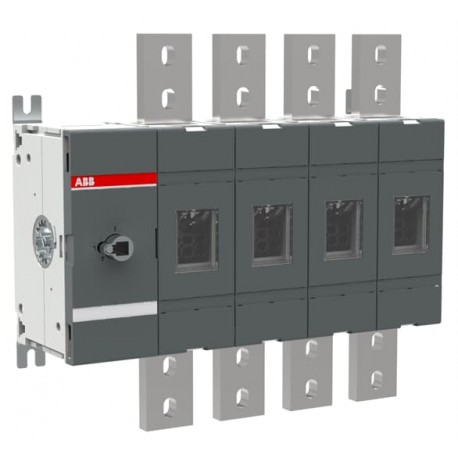

1SCA161767R1001 ABB Disconnector switch OT2000EC04
1SCA161767R1001
161767
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Abb disconnector switch, designated as model OT2000EC04, provides heavy-duty manual power isolation for large-scale industrial electrical systems. Plant operators rely on these high-capacity disconnects to safely cut power to main distribution lines during servicing operations.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- End Of Life Disassembling Instructions: 1SCC301120M0201
- Environmental Information: 1SCC301233D0201
- Environmental Product Declaration - EPD: 1SCC301300D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Data Sheet, Technical Information: No documentation needed
- Instructions and Manuals: 1SCC301047M0213
- Mechanical Drawings: 1SCC301504F0001
- Environmental Product Declaration - EPD: 1SCC301300D0201
- Environmental Information: 1SCC301233D0201
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
More info
▲| ABB EcoSolutions | |
|---|---|
| End Of Life Disassembling Instructions | 1SCC301120M0201 |
| Environmental Information | 1SCC301233D0201 |
| Environmental Product Declaration - EPD | 1SCC301300D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | No documentation needed |
| Instructions and Manuals | 1SCC301047M0213 |
| Mechanical Drawings | 1SCC301504F0001 |
| 1SCC301503F0001 | |
| OT1600E04.igs | |
| Environmental Product Declaration - EPD | 1SCC301300D0201 |
| Environmental | |
| Environmental Information | 1SCC301233D0201 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 414.5 mm |
| Product Net Height | 372 mm |
| Product Net Depth / Length | 167 mm |
| Product Net Weight | 21.6 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 170 mm |
| Package Level 1 Depth / Length | 400 mm |
| Package Level 1 Height | 435 mm |
| Package Level 1 Gross Weight | 22.6 kg |
| Package Level 1 EAN | 6417019918549 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 2000 A |
| Handle Type | Handle and shaft not included |
| Mechanical Durability | 6000 |
| Number of Poles | 4P |
| Pollution Degree | 3 |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-22B (Ie) | (380 ... 415 V) 2000 A |
| Rated Short-Circuit Making Capacity (Icm) | (400 V) 92 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
| Standards | IEC 60947-3 |
| Terminal Type | Lug terminals |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC301338D0201 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
