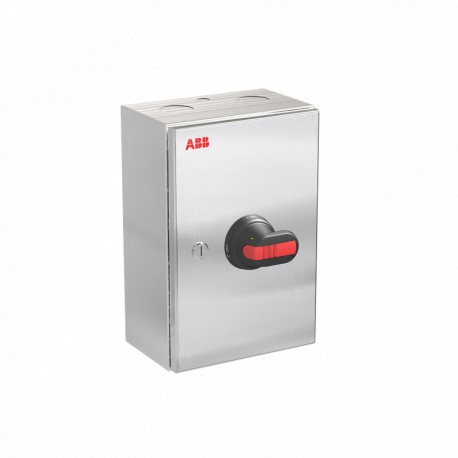

1SCA161467R1001 ABB Int. Box disconnector OTR80T3M
1SCA161467R1001
161467
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Encased in a protective housing, this ABB Int. Box disconnector OTR80T3M serves as a localized manual switching station for industrial machinery and automation feeds. Enclosed disconnectors allow operators to securely cut power directly at the machine interface, ensuring compliance with industrial safety codes. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC340076D0201
- RoHS Declaration: 1SCC340075D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 1SCC340095D0201
- Data Sheet, Technical Information: 1SCC340015C0201
- Instructions and Manuals: 1SCC340006M0013
- Mechanical Drawings: OTRK302013P50.stp
- Degree of Protection: acc. to IEC 60529 IP65
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85363030
- Last Ordering Date: 2026-11-30 All Countries
- Replacement Product ID (NEW): OTR80GT3M
- Country or Territory of Origin: Bulgaria
- Product Net Width: 200 mm
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340006M0013 |
| Mechanical Drawings | OTRK302013P50.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363030 |
| Last Ordering Date | 2026-11-30 All Countries |
| Replacement Product ID (NEW) | OTR80GT3M |
| Country or Territory of Origin | Bulgaria |
| Dimensions | |
| Product Net Width | 200 mm |
| Product Net Height | 300 mm |
| Product Net Depth / Length | 135 mm |
| Product Net Weight | 3.2 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 212 mm |
| Package Level 1 Depth / Length | 313 mm |
| Package Level 1 Height | 191 mm |
| Package Level 1 Gross Weight | 3.4 kg |
| Package Level 1 EAN | 6417019915753 |
| Technical | |
| Cable Cross-Section | 10 ... 70 mm² |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 2xø50.5+ø16.5 / 2xø50.5+ø16.5 |
| Color | Stainless |
| Connecting Capacity Main Circuit | Screw Clamp 10 ... 70 mm² |
| Screw Clamp / PE Terminal 2pc,10 ... 70 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 115 A |
| Enclosure Material | Stainless steel |
| Enclosure Type | Ensto_R |
| Handle Color | Black |
| Handle Type | Pistol |
| Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mechanical Durability | 20000 |
| Mounted Auxiliary Contacts | 1 NO, 0 NC |
| Neutral Type | No Neutral Terminal |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 |
| Number of Poles | 3P |
| Position of Line Terminals | Top In - Bottom Out |
| Power Loss | at Rated Operating Conditions per Pole 4 W |
| Rated Conditional Short-Circuit Current (Inc) | 16.5 kA |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 100 A |
| (500 V) 100 A | |
| (690 V) 100 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 80 A |
| (500 V) 60 A | |
| (690 V) 40 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 37 kW |
| (500 V) 37 kW | |
| (690 V) 37 kW | |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 3.6 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kA |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Special Functions | EMC |
| Standards | IEC 60947-1, -3 |
| Switches Operating Mechanism | On the Front of the Switch |
| Terminal Type | Screw Terminals |
| Tightening Torque | Main Circuit 6 N·m |
| Wire Stripping Length | 20 mm |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340006D2704 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Norway) | 1428927 |
