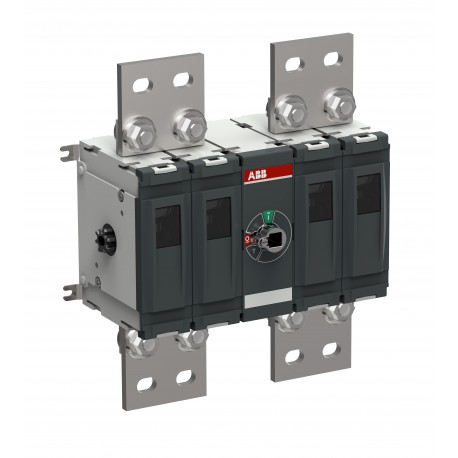

1SCA161281R1001 ABB Int. CC Disconnector OTDC800FV22-ESS
1SCA161281R1001
161281
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered by Abb, the 1SCA161281R1001 disconnector provides reliable circuit interruption within demanding electrical infrastructures, ensuring safe physical isolation of heavy-duty loads during service intervals. Panel builders deploy these robust disconnects across automated production lines to meet stringent industrial safety protocols.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 1SCC301112M0201
- Environmental Product Declaration - EPD: 1SCC301247D0201
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 59,09 %
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC301240D0201
- RoHS Declaration: 1SCC301239D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 1SCC301321D0201
- Data Sheet, Technical Information: 1SCC301022C0201
- Instructions and Manuals: 1SCC301102M0201
- Mechanical Drawings: OTDC800...1000_F_22_OTDCKIT800FS11.igs
- Wiring Diagram: 1SCC301046K0201
- Environmental Product Declaration - EPD: 1SCC301247D0201
- Minimum Order Quantity: 1 piece
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC301112M0201 |
| Environmental Product Declaration - EPD | 1SCC301247D0201 |
| Improved Energy Efficiency for Customers | Product Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 59,09 % |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC301240D0201 |
| RoHS Declaration | 1SCC301239D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC301321D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301022C0201 |
| Instructions and Manuals | 1SCC301102M0201 |
| 9AKK108467A9503 | |
| Mechanical Drawings | OTDC800...1000_F_22_OTDCKIT800FS11.igs |
| OTDC800...1000_F_22_OTDCKIT800FS11.stp | |
| 1SCC307779F0201 | |
| 1SCC307780F0201 | |
| Wiring Diagram | 1SCC301046K0201 |
| Environmental Product Declaration - EPD | 1SCC301247D0201 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85353010 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Frame Size | M |
| Product Net Width | 196.2 mm |
| 7.7 in | |
| Product Net Height | 211 mm |
| 8.3 in | |
| Product Net Depth / Length | 148 mm |
| 5.8 in | |
| Product Net Weight | 9.7 kg |
| 21.3 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 270 mm |
| 10.6 in | |
| Package Level 1 Depth / Length | 310 mm |
| 12.2 in | |
| Package Level 1 Height | 200 mm |
| 7.9 in | |
| Package Level 1 Gross Weight | 10 kg |
| 22 lb | |
| Package Level 1 EAN | 6417019913834 |
| Technical | |
| Connection Configuration | Single circuit 6c, 6g |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 800 A |
| Handle Type | Handle and shaft not included |
| Mounting Type | Base mounting |
| Number of Circuits | 1 |
| Number of Poles | 4P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out |
| Bottom In - Top Out | |
| Positive Opening Operation Torque (Direct Opening Action) | 18 … 30 N·m |
| Power Loss | at Rated Operating Conditions per Pole 30 ... 32 W |
| Protection Type | For 100kA Iq rating any fuse which does not exceed allowed let through peak 70kA or allowed let through energy 2,4MA^2s can be used. For 50kA Iq rating a circuit breaker or a fuse selected from the fuse coordination table. For the coordination table (9AKK108467A9503) please see the section Instructions and Manuals. |
| Rated Conditional Short-Circuit Current (Inc) | (1500 V DC) 100 kA |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Operational Current DC-21B (Ie) | (1500 V) 800 A |
| Rated Operational Voltage | 1500 V |
| Rated Short-Circuit Making Capacity (Icm) | (1500 V DC) 63 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | (1500 V DC) 10 kA |
| for 1 s 10 kA | |
| for 0.1 s 63 kA | |
| Shaft Diameter | 12 mm |
| 0.47 in | |
| Special Functions | No |
| Standards | IEC 60947-1, -3 |
| Switches Operating Mechanism | Mechanism Between the Poles |
| 22 (Between the Poles) | |
| Terminal Type | Lug terminals |
| Terminal Width | 30 mm |
| 1.2 in | |
| Utilization | Energy Storage System (ESS) |
| Utilization Category | Switching of resistive loads, including moderate overloads - occasional actuation (DC-21B) |
| Switching of single PV string(s) without reverse and overcurrents (DC-PV1) | |
| Certificates and Declarations | |
| CCC Certificate | CQC2019010302206498 |
| Declaration of Conformity - CE | 1SCC301227D2701 |
| Declaration of Conformity - UKCA | 1SCC301313D0201 |
| DNV GL Certificate | 1SCC301231D0201 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC004963 - Switch disconnector (DC) |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
