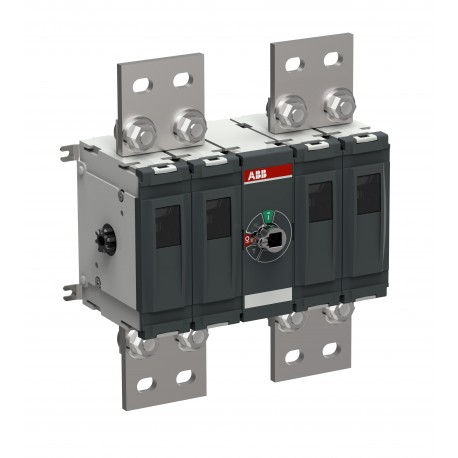

ABB 1SCA161279R1001 1SCA161279R1001 ABB OTDC800F22-ESS DC disconnector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA161279R1001 ABB OTDC800F22-ESS DC disconnector

1SCA161279R1001

161279

ABB

1 Pcs.

OTDC800F22-ESS DC disconnector OTDC800F22-ESS DC Switch-disconnector

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions1SCC301112M0201
Environmental Product Declaration - EPD1SCC301247D0201
Improved Energy Efficiency for CustomersProduct Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 59,09 %
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC301240D0201
RoHS Declaration1SCC301239D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC301321D0201
Popular Downloads
Data Sheet, Technical Information1SCC301022C0201
Instructions and Manuals1SCC301102M0201
9AKK108467A9503
Mechanical DrawingsOTDC800...1000_F_22_OTDCKIT800FS11.igs
OTDC800...1000_F_22_OTDCKIT800FS11.stp
1SCC307779F0201
1SCC307780F0201
Wiring Diagram1SCC301046K0201
Environmental Product Declaration - EPD1SCC301247D0201
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85363090
Country or Territory of OriginFinland
Dimensions
Product Frame SizeM
Product Net Width196.2 mm
7.7 in
Product Net Height211 mm
8.3 in
Product Net Depth / Length148 mm
5.8 in
Product Net Weight9.7 kg
21.3 lb
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width270 mm
10.6 in
Package Level 1 Depth / Length310 mm
12.2 in
Package Level 1 Height200 mm
7.9 in
Package Level 1 Gross Weight10 kg
22 lb
Package Level 1 EAN6417019913810
Technical
Connection ConfigurationSingle circuit 6c, 6g
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 800 A
Handle TypeHandle and shaft not included
Mounting TypeBase mounting
Number of Circuits1
Number of Poles4P
Operating ModeFront
Position of Line TerminalsTop In - Bottom Out
Bottom In - Top Out
Positive Opening Operation Torque (Direct Opening Action)18 … 30 N·m
Power Lossat Rated Operating Conditions per Pole 30 ... 32 W
Protection TypeFor 100kA Iq rating any fuse which does not exceed allowed let through peak 70kA or allowed let through energy 2,4MA^2s can be used. For 50kA Iq rating a circuit breaker or a fuse selected from the fuse coordination table. For the coordination table (9AKK108467A9503) please see the section Instructions and Manuals.
Rated Conditional Short-Circuit Current (Inc)(1000 V DC) 100 kA
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Operational Current DC-21B (Ie)(1000 V) 800 A
Rated Operational Voltage1000 V
Rated Short-Circuit Making Capacity (Icm)(1000 V DC) 63 kA
Rated Short-time Withstand Current Low Voltage (Icw)(1000 V DC) 10 kA
for 1 s 10 kA
for 0.1 s 63 kA
Shaft Diameter12 mm
0.47 in
Special FunctionsNo
StandardsIEC 60947-1, -3
Switches Operating MechanismMechanism Between the Poles
22 (Between the Poles)
Terminal TypeLug terminals
Terminal Width30 mm
1.2 in
UtilizationEnergy Storage System (ESS)
Utilization CategorySwitching of resistive loads, including moderate overloads - occasional actuation (DC-21B)
Switching of single PV string(s) without reverse and overcurrents (DC-PV1)
Certificates and Declarations
CCC CertificateCQC2019010302206498
Declaration of Conformity - CE1SCC301227D2701
Declaration of Conformity - UKCA1SCC301313D0201
DNV GL Certificate1SCC301231D0201
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC004963 - Switch disconnector (DC)
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

ETIM for 1SCA161279R1001 Low-voltage industrial controls and switchgear (EC000216)
Feature Name Feature Value
Version as main switch (EF006981) Yes
Version as maintenance-/service switch (EF006986) Yes
Version as safety switch (EF006985) No
Version as emergency stop installation (EF006959) No
Version as reversing switch (EF009408) No
Number of switches (EF005586) 1
Rated operating voltage (EF001435) 1000 V
Number of poles (EF001391) 4
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) No
Voltage release optional (EF007491) No
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for front mounting 4-hole (EF007247) Yes
Suitable for front mounting centre (EF007248) No
Suitable for distribution board installation (EF007262) Yes
Suitable for intermediate mounting (EF007264) No
Interlockable (EF006281) No
Type of electrical connection of main circuit (EF006819) Bolt connection
Degree of protection (IP), front side (EF003118) IP20
Degree of protection (NEMA) (EF011959) 1
