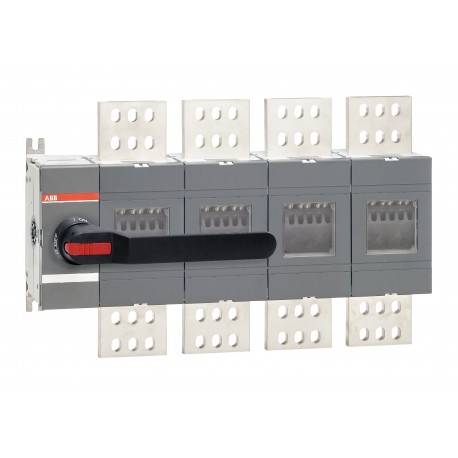

ABB 1SCA160397R1001 1SCA160397R1001 ABB Int. Disconnector DC-20 OT2500E04P-135 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA160397R1001 ABB Int. Disconnector DC-20 OT2500E04P-135

1SCA160397R1001

1SCA160397R1001

ABB

1 Pcs.

Int. Disconnector DC-20 OT2500E04P-135 OT2500E04P-135 Disconnector

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered for high-capacity direct current applications, the Abb internal disconnector OT2500E04P-135 manages high-amperage DC power disconnection. Industrial DC disconnectors are commonly deployed in heavy-duty renewable energy plants and large-scale industrial conversion systems to isolate circuits safely. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • End Of Life Disassembling Instructions: 1SCC301121M0201
  • Environmental Information: 1SCC301268D0201
  • Environmental Product Declaration - EPD: 1SCC301304D0201
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 1SCC301240D0201
  • RoHS Declaration: 1SCC301239D0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Toxic Substances Control Act - TSCA: 1SCC011025D0201
  • Data Sheet, Technical Information: 1SCC301023C0201
  • Instructions and Manuals: 1SCC301104M0201
  • Degree of Protection: Front IP00
  • Pollution Degree: 3
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85353010

More info

▲
ABB EcoSolutions
End Of Life Disassembling Instructions1SCC301121M0201
Environmental Information1SCC301268D0201
Environmental Product Declaration - EPD1SCC301304D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC301240D0201
RoHS Declaration1SCC301239D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information1SCC301023C0201
Instructions and Manuals1SCC301104M0201
Environmental Product Declaration - EPD1SCC301304D0201
Environmental
Degree of ProtectionFront IP00
Environmental Information1SCC301268D0201
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85353010
Country or Territory of OriginFinland
China
Dimensions
Product Frame SizeOT2500-135
Product Net Width598.5 mm
23.6 in
Product Net Height376.5 mm
14.8 in
Product Net Depth / Length145.5 mm
5.7 in
Product Net Weight22.3 kg
49.2 lb
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width580 mm
22.8 in
Package Level 1 Depth / Length780 mm
30.7 in
Package Level 1 Height500 mm
19.7 in
Package Level 1 Gross Weight35.2 kg
77.6 lb
Package Level 1 EAN6417019901831
Technical
Connection ConfigurationConnection type 2 or 3
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 2500 A
Θ = 40 °C 4000 A
Conventional Thermal Current (Ithe)Fully Enclosed 2500 A
Fully Enclosed 4000 A
Degree of ProtectionFront IP00
Handle ColorBlack
Handle Length274 mm
10.8 in
Handle TypeHandle and shaft included
Mechanical Durability600 cycle
Mounting TypeBase mounting
Number of Circuits1
2
Number of Poles4P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out
Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 85 W
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1500 V
Rated Operational Current AC-20B(1000 V AC) 2500 A
(1000 V AC) 4000 A
Rated Operational Current DC-20B(1500 V DC) 2500 A
(1500 V DC) 4000 A
Rated Short-time Withstand Current Low Voltage (Icw)for 0.3 s 80 kA
for 0.3 s 100 kA
Rated Voltage (Ur)1500 V
Shaft Diameter12 mm
0.47 in
Shaft Length280 mm
11.0 in
Special FunctionsNo
StandardsIEC 60947-1, -3
Switches Operating MechanismMechanism at the End of the Switch
04 (Left Side)
Terminal TypeLug terminals
Terminal Width100 mm
3.94 in
UtilizationEnergy Storage System (ESS)
Utilization CategoryConnecting and disconnecting under no-load conditions - occasional actuation (DC-20B)
Connecting and disconnecting under no-load conditions - occasional actuation (AC-20B)
Certificates and Declarations
A2L Certificate – IEC1SCC301338D0201
CCC Certificate2023980302000100
Declaration of Conformity - CE1SCC301229D2701
DNV GL Certificate1SCC301184D0204
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC004963 - Switch disconnector (DC)
eClassV11.1 : 27371403
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
