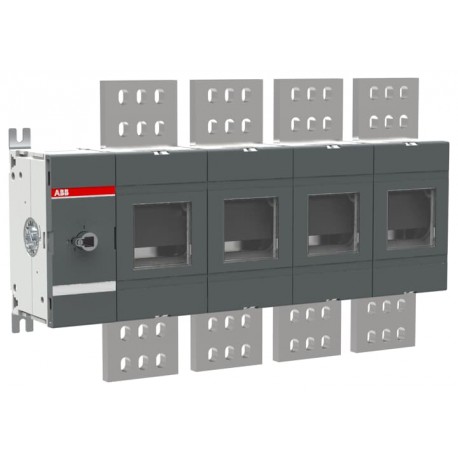

1SCA160395R1001 ABB Int. Disconnector DC-20 OT2500E04-135

1SCA160395R1001

1SCA160395R1001

ABB

1 Pcs.

Int. Disconnector DC-20 OT2500E04-135 OT2500E04-135 Disconnector

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
End Of Life Disassembling Instructions1SCC301121M0201
Environmental Information1SCC301268D0201
Environmental Product Declaration - EPD1SCC301304D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC301240D0201
RoHS Declaration1SCC301239D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information1SCC301023C0201
Instructions and Manuals1SCC301104M0201
Environmental Product Declaration - EPD1SCC301304D0201
Environmental
Degree of ProtectionFront IP00
Environmental Information1SCC301268D0201
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85353010
Country or Territory of OriginFinland
China
Dimensions
Product Frame SizeOT2500-135
Product Net Width598.5 mm
23.6 in
Product Net Height376.5 mm
14.8 in
Product Net Depth / Length145.5 mm
5.7 in
Product Net Weight33.3 kg
73.4 lb
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width407 mm
16.0 in
Package Level 1 Depth / Length619 mm
24.4 in
Package Level 1 Height190 mm
7.5 in
Package Level 1 Gross Weight35.2 kg
77.6 lb
Package Level 1 EAN6417019901817
Technical
Connection ConfigurationConnection type 2 or 3
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 2500 A
Θ = 40 °C 4000 A
Conventional Thermal Current (Ithe)Fully Enclosed 2500 A
Fully Enclosed 4000 A
Degree of ProtectionFront IP00
Handle TypeHandle and shaft not included
Mechanical Durability600 cycle
Mounting TypeBase mounting
Number of Circuits1
2
Number of Poles4P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out
Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 85 W
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1500 V
Rated Operational Current AC-20B(1000 V AC) 2500 A
(1000 V AC) 4000 A
Rated Operational Current DC-20B(1500 V DC) 2500 A
(1500 V DC) 4000 A
Rated Short-time Withstand Current Low Voltage (Icw)for 0.3 s 80 kA
for 0.3 s 100 kA
Rated Voltage (Ur)1500 V
Shaft Diameter12 mm
0.47 in
Shaft Length280 mm
11.0 in
Special FunctionsNo
StandardsIEC 60947-1, -3
Switches Operating MechanismMechanism at the End of the Switch
04 (Left Side)
Terminal TypeLug terminals
Terminal Width100 mm
3.94 in
UtilizationEnergy Storage System (ESS)
Utilization CategoryConnecting and disconnecting under no-load conditions - occasional actuation (DC-20B)
Connecting and disconnecting under no-load conditions - occasional actuation (AC-20B)
Certificates and Declarations
A2L Certificate – IEC1SCC301338D0201
CCC Certificate2023980302000100
Declaration of Conformity - CE1SCC301229D2701
DNV GL Certificate1SCC301184D0204
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC004963 - Switch disconnector (DC)
eClassV11.1 : 27371403
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)

ETIM for 1SCA160395R1001 Low-voltage industrial controls and switchgear (EC000216)
Feature Name Feature Value
Version as main switch (EF006981) Yes
Version as maintenance-/service switch (EF006986) Yes
Version as safety switch (EF006985) No
Version as emergency stop installation (EF006959) No
Version as reversing switch (EF009408) No
Number of switches (EF005586) 1
Number of poles (EF001391) 4
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) No
Voltage release optional (EF007491) No
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for front mounting 4-hole (EF007247) No
Suitable for front mounting centre (EF007248) No
Suitable for distribution board installation (EF007262) Yes
Suitable for intermediate mounting (EF007264) No
Interlockable (EF006281) Yes
Degree of protection (IP), front side (EF003118) IP00

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
