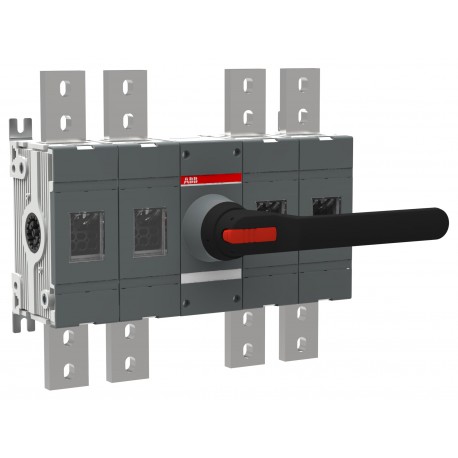

1SCA159248R1001 ABB Int. Disconnector DC-20 OT1600E22K-135
1SCA159248R1001
159248
ABB
1 Pcs.
Int. Disconnector DC-20 OT1600E22K-135
OT1600E22K-135 Disconnector
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB internal disconnector, part number 1SCA159248R1001, provides high-capacity current interruption and reliable isolation for heavy industrial DC power networks and distribution architectures. Heavy-duty disconnectors ensure system safety during maintenance cycles and emergency shutdowns.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- End Of Life Disassembling Instructions: 1SCC301120M0201
- Environmental Information: 1SCC301233D0201
- Environmental Product Declaration - EPD: 1SCC301300D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC301240D0201
- RoHS Declaration: 1SCC301239D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Data Sheet, Technical Information: 1SCC301023C0201
- Instructions and Manuals: 1SCC301104M0201
- Environmental Product Declaration - EPD: 1SCC301300D0201
- Degree of Protection: Front IP00
- Environmental Information: 1SCC301233D0201
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85353010
More info
▲| ABB EcoSolutions | |
|---|---|
| End Of Life Disassembling Instructions | 1SCC301120M0201 |
| Environmental Information | 1SCC301233D0201 |
| Environmental Product Declaration - EPD | 1SCC301300D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC301240D0201 |
| RoHS Declaration | 1SCC301239D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301023C0201 |
| Instructions and Manuals | 1SCC301104M0201 |
| Environmental Product Declaration - EPD | 1SCC301300D0201 |
| Environmental | |
| Degree of Protection | Front IP00 |
| Environmental Information | 1SCC301233D0201 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85353010 |
| Country or Territory of Origin | Finland |
| China | |
| Dimensions | |
| Product Frame Size | OT1600-135 |
| Product Net Width | 414.5 mm |
| 16.3 in | |
| Product Net Height | 372 mm |
| 14.6 in | |
| Product Net Depth / Length | 148.5 mm |
| 5.9 in | |
| Product Net Weight | 22.3 kg |
| 49.2 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 400 mm |
| 15.7 in | |
| Package Level 1 Depth / Length | 435 mm |
| 17.1 in | |
| Package Level 1 Height | 170 mm |
| 6.7 in | |
| Package Level 1 Gross Weight | 22.6 kg |
| 49.9 lb | |
| Package Level 1 EAN | 6417019886954 |
| Technical | |
| Connection Configuration | Connection type 2 or 3 |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 1600 A |
| Θ = 40 °C 2500 A | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 1600 A |
| Fully Enclosed 2500 A | |
| Degree of Protection | Front IP00 |
| Handle Color | Black |
| Handle Length | 274 mm |
| 10.8 in | |
| Handle Type | Direct mounted pistol type handle |
| Mechanical Durability | 600 cycle |
| Mounting Type | Base mounting |
| Number of Circuits | 1 |
| 2 | |
| Number of Poles | 4P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Bottom In - Top Out | |
| Power Loss | at Rated Operating Conditions per Pole 48 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1500 V |
| Rated Operational Current AC-20B | (1000 V AC) 1600 A |
| (1000 V AC) 2500 A | |
| Rated Operational Current DC-20B | (1500 V DC) 1600 A |
| (1500 V DC) 2500 A | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 0.3 s 36 kA |
| for 0.3 s 50 kA | |
| for 0.3 s 65 kA | |
| Rated Voltage (Ur) | 1500 V |
| Shaft Diameter | 12 mm |
| 0.47 in | |
| Shaft Length | 280 mm |
| 11.0 in | |
| Special Functions | No |
| Standards | IEC 60947-1, -3 |
| Switches Operating Mechanism | Mechanism Between the Poles |
| 22 (Between the Poles) | |
| Terminal Type | Lug terminals |
| Terminal Width | 50 mm |
| 1.97 in | |
| Utilization | Energy Storage System (ESS) |
| Utilization Category | Connecting and disconnecting under no-load conditions - occasional actuation (DC-20B) |
| Connecting and disconnecting under no-load conditions - occasional actuation (AC-20B) | |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC301338D0201 |
| CCC Certificate | 2023980302000100 |
| Declaration of Conformity - CE | 1SCC301229D2701 |
| DNV GL Certificate | 1SCC301184D0204 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC004963 - Switch disconnector (DC) |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
