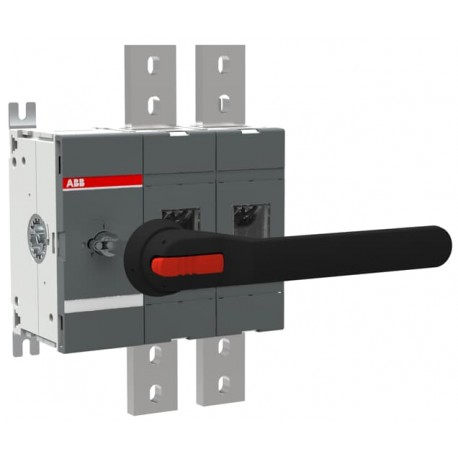

1SCA159246R1001 ABB Int.- disconnect OT1600E02P-135
1SCA159246R1001
159246
ABB
1 Pcs.
Int.- disconnect OT1600E02P-135
OT1600E02P-135 Disconnector
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Heavy-duty installations utilize an ABB disconnect switch to provide visible, reliable circuit isolation for high-amperage industrial power networks. These industrial components ensure safety during equipment maintenance by physically breaking the main supply line.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- End Of Life Disassembling Instructions: 1SCC301120M0201
- Environmental Information: 1SCC301233D0201
- Environmental Product Declaration - EPD: 1SCC301300D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC301240D0201
- RoHS Declaration: 1SCC301239D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Data Sheet, Technical Information: 1SCC301023C0201
- Instructions and Manuals: 1SCC301104M0201
- Degree of Protection: Front IP00
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85353010
More info
▲| ABB EcoSolutions | |
|---|---|
| End Of Life Disassembling Instructions | 1SCC301120M0201 |
| Environmental Information | 1SCC301233D0201 |
| Environmental Product Declaration - EPD | 1SCC301300D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC301240D0201 |
| RoHS Declaration | 1SCC301239D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301023C0201 |
| Instructions and Manuals | 1SCC301104M0201 |
| Environmental Product Declaration - EPD | 1SCC301300D0201 |
| Environmental | |
| Degree of Protection | Front IP00 |
| Environmental Information | 1SCC301233D0201 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85353010 |
| Country or Territory of Origin | Finland |
| China | |
| Dimensions | |
| Product Frame Size | OT1600-135 |
| Product Net Width | 254.5 mm |
| 10.0 in | |
| Product Net Height | 372 mm |
| 14.6 in | |
| Product Net Depth / Length | 148.5 mm |
| 5.9 in | |
| Product Net Weight | 12.8 kg |
| 28.2 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 400 mm |
| 15.7 in | |
| Package Level 1 Depth / Length | 435 mm |
| 17.1 in | |
| Package Level 1 Height | 170 mm |
| 6.7 in | |
| Package Level 1 Gross Weight | 13.2 kg |
| 29.2 lb | |
| Package Level 1 EAN | 6417019886930 |
| Technical | |
| Connection Configuration | Connection type 1 |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 1600 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 1600 A |
| Degree of Protection | Front IP00 |
| Handle Color | Black |
| Handle Length | 274 mm |
| 10.8 in | |
| Handle Type | Handle and shaft included |
| Mechanical Durability | 600 cycle |
| Mounting Type | Base mounting |
| Number of Circuits | 1 |
| Number of Poles | 2P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Bottom In - Top Out | |
| Power Loss | at Rated Operating Conditions per Pole 48 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1500 V |
| Rated Operational Current AC-20B | (1000 V AC) 1600 A |
| Rated Operational Current DC-20B | (1500 V DC) 1600 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 0.3 s 36 kA |
| for 0.3 s 50 kA | |
| Rated Voltage (Ur) | 1500 V |
| Shaft Diameter | 12 mm |
| 0.47 in | |
| Shaft Length | 280 mm |
| 11.0 in | |
| Special Functions | No |
| Standards | IEC 60947-1, -3 |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| 02 (Left Side) | |
| Terminal Type | Lug terminals |
| Terminal Width | 50 mm |
| 1.97 in | |
| Utilization | Energy Storage System (ESS) |
| Utilization Category | Connecting and disconnecting under no-load conditions - occasional actuation (DC-20B) |
| Connecting and disconnecting under no-load conditions - occasional actuation (AC-20B) | |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC301338D0201 |
| CCC Certificate | 2023980302000100 |
| Declaration of Conformity - CE | 1SCC301229D2701 |
| DNV GL Certificate | 1SCC301184D0204 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC004963 - Switch disconnector (DC) |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
