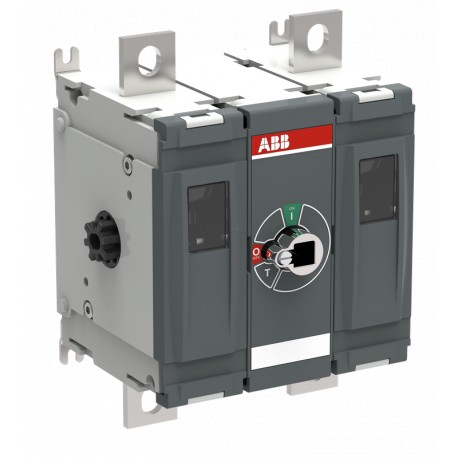

1SCA158856R1001 ABB DC OTDC800FV11 disconnect switch
1SCA158856R1001
158856
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB DC OTDC800FV11 disconnect switch is utilized in electrical power distribution networks to safely isolate direct current circuits during maintenance, servicing, or emergency procedures. These heavy-duty switching devices allow technicians to interrupt high-amperage loads securely, protecting downstream equipment and personnel from accidental exposure to energized lines.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 1SCC301112M0201
- Environmental Product Declaration - EPD: 1SCC301247D0201
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 59,09 %
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC301240D0201
- RoHS Declaration: 1SCC301239D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 1SCC301321D0201
- Data Sheet, Technical Information: 1SCC301022C0201
- Instructions and Manuals: 1SCC301099M0201
- Mechanical Drawings: OTDC315-630FV11_stp
- Wiring Diagram: 1SCC301030K0201
- Degree of Protection: Front IP20
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC301112M0201 |
| Environmental Product Declaration - EPD | 1SCC301247D0201 |
| Improved Energy Efficiency for Customers | Product Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 59,09 % |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC301240D0201 |
| RoHS Declaration | 1SCC301239D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC301321D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301022C0201 |
| Instructions and Manuals | 1SCC301099M0201 |
| 9AKK107492A6191 | |
| Mechanical Drawings | OTDC315-630FV11_stp |
| OTDC315-630FV11_igs | |
| 1SCC307658F0001 | |
| 1SCC307659F0001 | |
| Wiring Diagram | 1SCC301030K0201 |
| Environmental Product Declaration - EPD | 1SCC301247D0201 |
| Environmental | |
| Degree of Protection | Front IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85353010 |
| Country or Territory of Origin | Finland |
| India | |
| Dimensions | |
| Product Frame Size | M |
| Product Net Width | 157.5 mm |
| 6.2 in | |
| Product Net Height | 211 mm |
| 8.3 in | |
| Product Net Depth / Length | 135 mm |
| 5.3 in | |
| Product Net Weight | 3.5 kg |
| 7.7 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 220 mm |
| 8.7 in | |
| Package Level 1 Depth / Length | 250 mm |
| 9.8 in | |
| Package Level 1 Height | 210 mm |
| 8.3 in | |
| Package Level 1 Gross Weight | 3.7 kg |
| 8.2 lb | |
| Package Level 1 EAN | 6417019882123 |
| Technical | |
| Connection Configuration | Single circuit 2a, 2b |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 800 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 630 A |
| Degree of Protection | Front IP20 |
| Handle Type | Handle and shaft not included |
| Mechanical Durability | 10000 cycle |
| Mounting Type | Base mounting |
| Number of Circuits | 1 |
| Number of Poles | 2P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Bottom In - Top Out | |
| Positive Opening Operation Torque (Direct Opening Action) | 11 … 19 N·m |
| Power Loss | at Rated Operating Conditions per Pole 30 ... 32 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1500 V |
| Rated Operational Current DC-21B (Ie) | (1500 V) 800 A |
| Rated Operational Current DC-22B | (1500 V) 400 A |
| Rated Operational Current DC-PV1 | (1500 V) 500 A |
| Rated Operational Current DC-PV2 | (1500 V) 500 A |
| Rated Operational Voltage | 1500 V |
| Rated Short-Circuit Making Capacity (Icm) | (1500 V DC) 10 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | (1500 V DC) 10 kA |
| for 1 s 10 kA | |
| Shaft Diameter | 12 mm |
| 0.47 in | |
| Special Functions | No |
| Standards | IEC 60947-1, -3 |
| Switches Operating Mechanism | Mechanism Between the Poles |
| 11 (Between the Poles) | |
| Terminal Type | Lug terminals |
| Terminal Width | 30 mm |
| 1.2 in | |
| Utilization | Photovoltaic |
| Utilization Category | Switching of resistive loads, including moderate overloads - occasional actuation (DC-21B) |
| Switching of mixed resistive and inductive loads, including moderate overloads (i.e. shunt motors) - occasional actuation (DC-22B) | |
| Switching of single PV string(s) without reverse and overcurrents (DC-PV1) | |
| Switching of several PV string(s) with reverse and overcurrents (DC-PV2) | |
| Certificates and Declarations | |
| CCC Certificate | CQC2019010302206498 |
| Declaration of Conformity - CE | 1SCC301227D2701 |
| Declaration of Conformity - UKCA | 1SCC301313D0201 |
| DNV GL Certificate | 1SCC301231D0201 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC004963 - Switch disconnector (DC) |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
