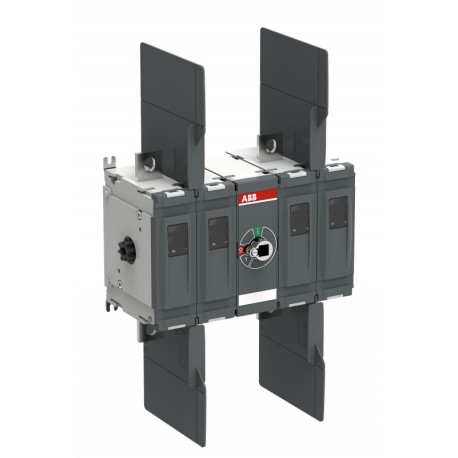

ABB 1SCA158299R1001 1SCA158299R1001 ABB DC OTDC400FV22 disconnect switch View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA158299R1001 ABB DC OTDC400FV22 disconnect switch

1SCA158299R1001

158299

ABB

1 Pcs.

DC OTDC400FV22 disconnect switch A fully optimized four-pole DC switch-disconnector for 1500V utility-scale photovoltaic power plants covering 315-630A current range. The new design offers both a size reduction and an increase in efficiency and performance to help manufacturers adapt to the industry’s rapid adoption of 1500V DC solutions.The four-pole 1500V DC concept helps manufacturers improve system efficiency, reducing switch losses. The compact size of the new OTDC range makes it possible for manufacturers to reduce the size of combiner boxes and inverters.Main characteristics of this particular OTDC type:Disconnect double PV circuit, Approved according to IEC 60947-1, -3

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

b'

General Information

Extended Product Type:
OTDC400FV22
Product ID:
1SCA158299R1001
EAN:
6417019874043
Catalog Description:
OTDC400FV22 DC Switch-disconnector
Long Description:
A fully optimized four-pole DC switch-disconnector for 1500V utility-scale photovoltaic power plants covering 315-630A current range. The new design offers both a size reduction and an increase in efficiency and performance to help manufacturers adapt to the industry’s rapid adoption of 1500V DC solutions.The four-pole 1500V DC concept helps manufacturers improve system efficiency, reducing switch losses. The compact size of the new OTDC range makes it possible for manufacturers to reduce the size of combiner boxes and inverters.Main characteristics of this particular OTDC type:Disconnect double PV circuit, Approved according to IEC 60947-1, -3
\n

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85353010
Country of Origin:
Finland (FI)

Popular Downloads

Data Sheet, Technical Information:\n1SCC301022C0201
Instructions and Manuals:\n1SCC301099M0201
9AKK107492A6191
Wiring Diagram:\n1SCC301035K0201

Dimensions

Product Frame Size:
M
Product Net Width:
255.5 mm

10.1 in
Product Net Height:
211 mm

8.3 in
Product Net Depth / Length:
135 mm

5.3 in
Product Net Weight:
7.7 kg

16.9 lb

Technical

Connection Configuration:
Double circuit 4a, 4c
Rated Operational Current DC-21B (Ie):
(1500 V) 400 A
Rated Operational Current DC-22B:
(1500 V) 400 A
Rated Operational Current DC-PV1:
(1500 V) 400 A
Rated Operational Current DC-PV2:
(1500 V) 400 A
Conventional Free-air Thermal Current (Ith):
400 A
Conventional Thermal Current (Ithe):
Fully Enclosed 400 A
Rated Impulse Withstand Voltage (Uimp):
12 kV
Rated Insulation Voltage (Ui):
1500 V
Rated Operational Voltage:
1500 V
Rated Short-Circuit Making Capacity (Icm):
(1500 V DC) 10 kA
Rated Short-time Withstand Current (Icw):
(1500 V DC) 10 kA

for 1 s 10 kA
Power Loss:
at Rated Operating Conditions per Pole 13 W
Pollution Degree:
3
Handle Type:
Handle and shaft not included
Shaft Diameter:
12 mm

0.47 in
Switches Operating Mechanism:
Mechanism Between the Poles

22 (Between the Poles)
Position of Line Terminals:
Top In - Bottom Out

Bottom In - Top Out
Operating Mode:
Front Operated
Standards:
IEC 60947-1, -3
Special Functions:
No
Mounting Type:
Base mounting
Number of Circuits:
2
Number of Poles:
4
Degree of Protection:
Front IP20
Terminal Type:
Lug terminals
Terminal Width:
30 mm

1.2 in
Tightening Torque:
Cable Lug 30…40 N·m
Mechanical Durability:
10000 cycle

Environmental

RoHS Status:
Following EU Directive 2011/65/EU

Certificates and Declarations (Document Number)

Declaration of Conformity - CE:\n1SCC301227D2701
DNV GL Certificate:\n1SCC301231D0201
Instructions and Manuals:\n1SCC301099M0201
9AKK107492A6191
RoHS Information:\n1SCC301227D2701

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
270 mm

10.6 in
Package Level 1 Depth / Length:
310 mm

12.2 in
Package Level 1 Height:
200 mm

7.9 in
Package Level 1 Gross Weight:
8 kg

17.5 lb
Package Level 1 EAN:
6417019874043

Classifications

Object Classification Code:
Q
ETIM 5:
EC000216 - Switch disconnector
ETIM 6:
EC000216 - Switch disconnector
ETIM 7:
EC000216 - Switch disconnector
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
\n
'

ETIM for 1SCA158299R1001 Low-voltage industrial controls and switchgear (EC000216)
Feature Name Feature Value
Version as main switch (EF006981) Yes
Version as maintenance-/service switch (EF006986) Yes
Version as safety switch (EF006985) No
Version as emergency stop installation (EF006959) No
Version as reversing switch (EF009408) No
Number of switches (EF005586) 1
Rated operating voltage (EF001435) 1500 V
Rated permanent current Iu (EF001389) 400 A
Number of poles (EF001391) 4
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) No
Voltage release optional (EF007491) No
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for front mounting 4-hole (EF007247) Yes
Suitable for front mounting centre (EF007248) No
Suitable for distribution board installation (EF007262) Yes
Suitable for intermediate mounting (EF007264) No
Interlockable (EF006281) No
Type of electrical connection of main circuit (EF006819) Bolt connection
Degree of protection (IP), front side (EF003118) IP20
Degree of protection (NEMA) (EF011959) 1
