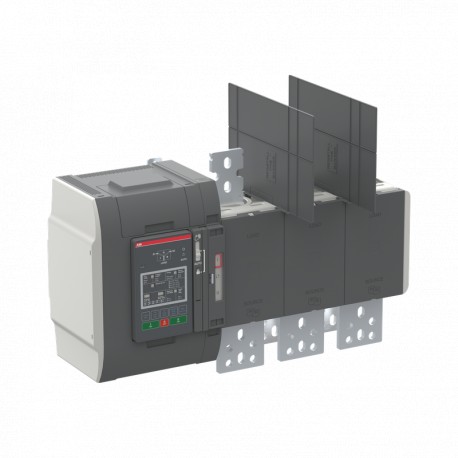

1SCA153637R1001 ABB Int. TruONE ATS Switch OXB800U3X2QB
1SCA153637R1001
153637
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Abb 1SCA153637R1001 TruONE ATS switch automates the transfer of electrical loads between primary and backup power sources, ensuring uninterrupted facility operations. Commercial and industrial installations rely on automatic transfer switches to maintain critical power continuity during grid failures.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 1SCC303064M0201
- Environmental Product Declaration - EPD: 1SCC303133D0201
- Extended Product Lifetime: Product Modularity
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 69.9 %
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011022D0201
- RoHS Declaration: 1SCC011023D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 1SCC303119D0201
- Data Sheet, Technical Information: 1SCC303008C0201
- Instructions and Manuals: 1SCC303011M0201 REVISION FW 2.05
- Mechanical Drawings: OX_800U-1600E_3X2_B_.stp
- Wiring Diagram: Circuit diagram_OXB_B_.dxf
- Environmental Product Declaration - EPD: 1SCC303133D0201
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC303064M0201 |
| Environmental Product Declaration - EPD | 1SCC303133D0201 |
| Extended Product Lifetime | Product Modularity |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 69.9 % |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011022D0201 |
| RoHS Declaration | 1SCC011023D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC303119D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC303008C0201 |
| Instructions and Manuals | 1SCC303011M0201 REVISION FW 2.05 |
| Mechanical Drawings | OX_800U-1600E_3X2_B_.stp |
| 1SCC308269F0001 | |
| 1SCC308268F0001 | |
| 1SCC308181F0001 | |
| 1SCC308180F0001 | |
| 1SCC308329F0001 | |
| 1SCC308328F0001 | |
| Wiring Diagram | Circuit diagram_OXB_B_.dxf |
| Circuit diagram_OXB_B_.pdf | |
| Environmental Product Declaration - EPD | 1SCC303133D0201 |
| Environmental | |
| Degree of Protection | Front IP20 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Dimensions | |
| Product Net Width | 597 mm |
| 23.5 in | |
| Product Net Height | 359 mm |
| 14.13 in | |
| Product Net Depth / Length | 212 mm |
| 8.35 in | |
| Product Net Weight | 31.14 kg |
| 68.65 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 430 mm |
| 16.93 in | |
| Package Level 1 Depth / Length | 690 mm |
| 27.17 in | |
| Package Level 1 Height | 450 mm |
| 17.72 in | |
| Package Level 1 Gross Weight | 44.14 kg |
| 97.31 lb | |
| Package Level 1 EAN | 6417019846637 |
| Technical | |
| Controller Type | Level 2 (DIP) |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 1000 A |
| Degree of Protection | Front IP20 |
| Handle Type | Direct mounted handle |
| Number of Poles | 3P |
| Position of Line Terminals | Supplies on Bottom - Load on Top |
| Power Loss | at Rated Operating Conditions per Pole 8 W |
| Rated Frequency (f) | Main Circuit 50-60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-31B (Ie) | (200 … 415 V AC) 1000 A |
| Rated Operational Current AC-32B (Ie) | (200 … 415 V AC) 1000 A |
| Rated Operational Current AC-33B (Ie) | (200 … 415 V AC) 1000 A |
| Rated Operational Voltage | Main Circuit 200...480 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 0.1 s 65 kiloampere rms |
| Special Functions | Open style |
| Standards | UL1008 / IEC60947-6-1 |
| Terminal Type | Bolt |
| Transition Type | Delayed |
| Technical UL/CSA | |
| Ampere Rating | 200-480V 800 A |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC303063D2701 |
| EU Data Act Compliance Declaration | 9AKK108471A5903 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
