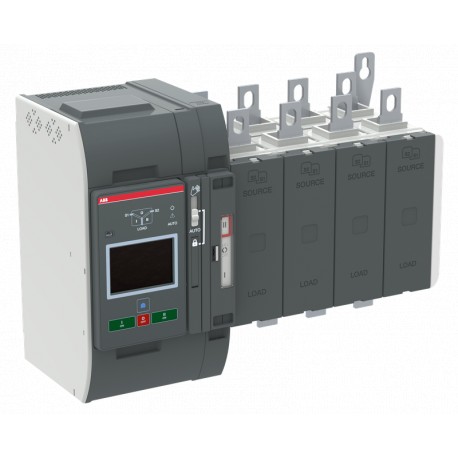

ABB 1SCA153519R1001 1SCA153519R1001 ABB Int. TruONE ATS Switch OXB400E3S4QT View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA153519R1001 ABB Int. TruONE ATS Switch OXB400E3S4QT

1SCA153519R1001

153519

ABB

1 Pcs.

Int. TruONE ATS Switch OXB400E3S4QT Int. Switch TruONE ATS OXB400E3S4QT OXB400E3S4QT AUTOMATIC TRANSFER SWITCH

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for seamless power continuity, the Abb Int. TruONE ATS Switch OXB400E3S4QT (part number 1SCA153519R1001) automatically transfers critical loads between primary and backup power sources. Automatic transfer switches prevent downtime in industrial facilities by instantly switching supplies during utility grid failures.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • ABB EcoSolutions: Yes
  • ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
  • End Of Life Disassembling Instructions: 1SCC303063M0201
  • Environmental Product Declaration - EPD: 1SCC303129D0201
  • Extended Product Lifetime: Product Modularity
  • Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 65.3 %
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 1SCC011022D0201
  • RoHS Declaration: 1SCC011023D0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Toxic Substances Control Act - TSCA: 1SCC303119D0201
  • Data Sheet, Technical Information: 1SCC303008C0201
  • Instructions and Manuals: 1SCC303011M0201 REVISION FW 2.05
  • Mechanical Drawings: OX_260-400E_3S4_T_
  • Wiring Diagram: Circuit diagram_OXB_T_.dxf

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions1SCC303063M0201
Environmental Product Declaration - EPD1SCC303129D0201
Extended Product LifetimeProduct Modularity
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 65.3 %
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011022D0201
RoHS Declaration1SCC011023D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC303119D0201
Popular Downloads
Data Sheet, Technical Information1SCC303008C0201
Instructions and Manuals1SCC303011M0201 REVISION FW 2.05
Mechanical DrawingsOX_260-400E_3S4_T_
1SCC308303F0001
1SCC308302F0001
1SCC308301F0001
1SCC308300F0001
1SCC308333F0001
1SCC308332F0001
Wiring DiagramCircuit diagram_OXB_T_.dxf
Circuit diagram_OXB_T_.pdf
Environmental Product Declaration - EPD1SCC303129D0201
Environmental
Degree of ProtectionFront IP20
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Dimensions
Product Net Width455 mm
17.91 in
Product Net Height305 mm
12.01 in
Product Net Depth / Length183 mm
7.2 in
Product Net Weight17.78 kg
39.2 lb
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width345 mm
13.58 in
Package Level 1 Depth / Length565 mm
22.24 in
Package Level 1 Height240 mm
9.45 in
Package Level 1 Gross Weight18.58 kg
40.96 lb
Package Level 1 EAN6417019845456
Technical
Controller TypeLevel 4 (Touch)
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 400 A
Degree of ProtectionFront IP20
Fourth Pole PositionLeft and Right Side
Fourth Pole TypeSwitched - Simultaneous Function
Handle TypeDirect mounted handle
Number of Poles4P
Pollution Degree3
Position of Line TerminalsSupplies on Top - Load on Bottom
Power Lossat Rated Operating Conditions per Pole 20.3 W
Rated Frequency (f)Main Circuit 50-60 Hz
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current AC-31B (Ie)(200 … 415 V AC) 400 A
Rated Operational Current AC-32B (Ie)(200 … 415 V AC) 400 A
Rated Operational Current AC-33B (Ie)(200 … 415 V AC) 400 A
Rated Operational VoltageMain Circuit 200...480 V AC
Rated Short-time Withstand Current Low Voltage (Icw)for 0.3 s 25 kiloampere rms
Special FunctionsOpen style
StandardsIEC60947-6-1
Terminal TypeBolt
Transition TypeDelayed
Certificates and Declarations
Declaration of Conformity - CE1SCC303064D2701
EU Data Act Compliance Declaration9AKK108471A5903
External Classifications and Standards
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
