ABB 1SCA153497R1001 1SCA153497R1001 ABB Int. TruONE ATS Switch OXB315E1S2QB View larger
Images are for illustrative purposes only. Please refer to data sheet for details

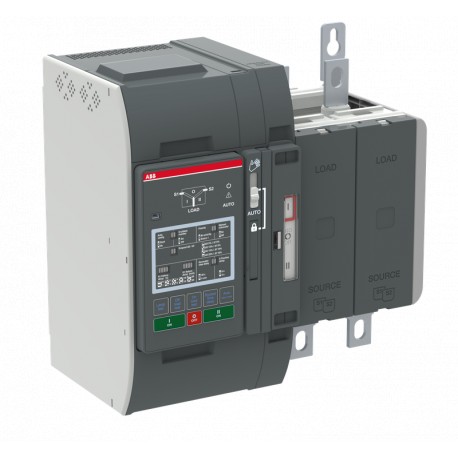

1SCA153497R1001 ABB Int. TruONE ATS Switch OXB315E1S2QB

1SCA153497R1001

153497

ABB

1 Pcs.

Int. TruONE ATS Switch OXB315E1S2QB Int. Switch TruONE ATS OXB315E1S2QB OXB315E1S2QB AUTOMATIC TRANSFER SWITCH

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions1SCC303063M0201
Environmental Product Declaration - EPD1SCC303129D0201
Extended Product LifetimeProduct Modularity
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 65.3 %
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011022D0201
RoHS Declaration1SCC011023D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC303119D0201
Popular Downloads
Data Sheet, Technical Information1SCC303008C0201
Instructions and Manuals1SCC303011M0201 REVISION FW 2.05
Mechanical DrawingsOX_260-400E_1S2_B_
1SCC308283F0001
1SCC308282F0001
1SCC308281F0001
1SCC308280F0001
1SCC308329F0001
1SCC308328F0001
Wiring DiagramCircuit diagram_OXB_B_.dxf
Circuit diagram_OXB_B_.pdf
Environmental Product Declaration - EPD1SCC303129D0201
Environmental
Degree of ProtectionFront IP20
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Dimensions
Product Net Width325 mm
12.8 in
Product Net Height305 mm
12.01 in
Product Net Depth / Length183 mm
7.2 in
Product Net Weight13.34 kg
29.41 lb
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width345 mm
13.58 in
Package Level 1 Depth / Length445 mm
17.52 in
Package Level 1 Height240 mm
9.45 in
Package Level 1 Gross Weight14.04 kg
30.95 lb
Package Level 1 EAN6417019845234
Technical
Controller TypeLevel 2 (DIP)
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 315 A
Degree of ProtectionFront IP20
Handle TypeDirect mounted handle
Number of Poles2P
Pollution Degree3
Position of Line TerminalsSupplies on Bottom - Load on Top
Power Lossat Rated Operating Conditions per Pole 12.1 W
Rated Frequency (f)Main Circuit 50-60 Hz
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current AC-31B (Ie)(200 … 240 V AC) 315 A
Rated Operational Current AC-32B (Ie)(200 … 240 V AC) 315 A
Rated Operational Current AC-33B (Ie)(200 … 240 V AC) 315 A
Rated Operational VoltageMain Circuit 200...240 V AC
Rated Short-time Withstand Current Low Voltage (Icw)for 0.3 s 18 kiloampere rms
Special FunctionsOpen style
StandardsIEC60947-6-1
Terminal TypeBolt
Transition TypeDelayed
Certificates and Declarations
Declaration of Conformity - CE1SCC303064D2701
EU Data Act Compliance Declaration9AKK108471A5903
External Classifications and Standards
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
