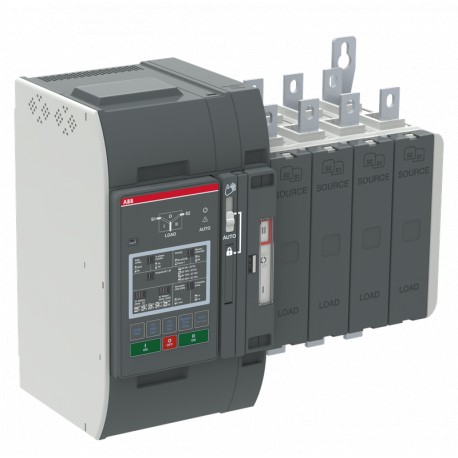

ABB 1SCA153457R1001 1SCA153457R1001 ABB Int. TruONE ATS Switch OXB250E3S2QT View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA153457R1001 ABB Int. TruONE ATS Switch OXB250E3S2QT

1SCA153457R1001

153457

ABB

1 Pcs.

Int. TruONE ATS Switch OXB250E3S2QT Int. Switch TruONE ATS OXB250E3S2QT OXB250E3S2QT AUTOMATIC TRANSFER SWITCH

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions1SCC303063M0201
Environmental Product Declaration - EPD1SCC303127D0201
Extended Product LifetimeProduct Modularity
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 67.3 %
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011022D0201
RoHS Declaration1SCC011023D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC303119D0201
Popular Downloads
Data Sheet, Technical Information1SCC303008C0201
Instructions and Manuals1SCC303011M0201 REVISION FW 2.05
Mechanical DrawingsOX_30U-250_3S2_T_
1SCC308249F0001
1SCC308248F0001
1SCC308247F0001
1SCC308246F0001
1SCC308329F0001
1SCC308328F0001
Wiring DiagramCircuit diagram_OXB_T_.dxf
Circuit diagram_OXB_T_.pdf
Environmental Product Declaration - EPD1SCC303127D0201
Environmental
Degree of ProtectionFront IP20
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Dimensions
Product Net Width375 mm
14.76 in
Product Net Height305 mm
12.01 in
Product Net Depth / Length183 mm
7.2 in
Product Net Weight15.57 kg
34.33 lb
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width345 mm
13.58 in
Package Level 1 Depth / Length445 mm
17.52 in
Package Level 1 Height240 mm
9.45 in
Package Level 1 Gross Weight16.27 kg
35.87 lb
Package Level 1 EAN6417019844831
Technical
Controller TypeLevel 2 (DIP)
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 250 A
Degree of ProtectionFront IP20
Fourth Pole PositionLeft and Right Side
Fourth Pole TypeSwitched - Simultaneous Function
Handle TypeDirect mounted handle
Number of Poles4P
Pollution Degree3
Position of Line TerminalsSupplies on Top - Load on Bottom
Power Lossat Rated Operating Conditions per Pole 9.7 W
Rated Frequency (f)Main Circuit 50-60 Hz
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current AC-31B (Ie)(200 … 415 V AC) 250 A
Rated Operational Current AC-32B (Ie)(200 … 415 V AC) 250 A
Rated Operational Current AC-33B (Ie)(200 … 415 V AC) 250 A
Rated Operational VoltageMain Circuit 200...480 V AC
Rated Short-time Withstand Current Low Voltage (Icw)for 0.3 s 18 kiloampere rms
Special FunctionsOpen style
StandardsIEC60947-6-1
Terminal TypeBolt
Transition TypeDelayed
Certificates and Declarations
Declaration of Conformity - CE1SCC303064D2701
EU Data Act Compliance Declaration9AKK108471A5903
External Classifications and Standards
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
