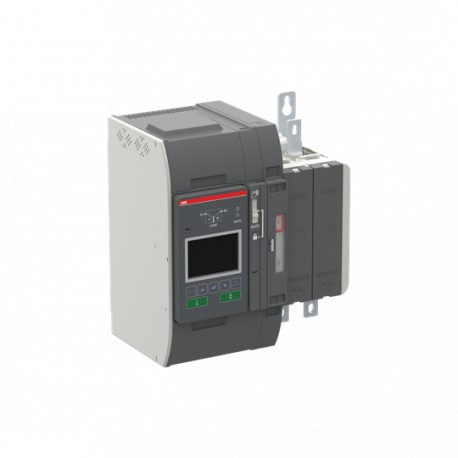

1SCA153245R1001 ABB Int. TruONE ATS Switch OXA100U2X3QB
1SCA153245R1001
1SCA153245R1001
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Abb component 1SCA153245R1001 is an ABB Int. TruONE ATS Switch OXA100U2X3QB designed for automated power transfer applications. Automatic transfer switches monitor primary power sources and seamlessly switch to backup generators during utility outages to maintain continuous operations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 1SCC303063M0201
- Environmental Product Declaration - EPD: 1SCC303126D0201
- Extended Product Lifetime: Product Modularity
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 66.9 %
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011022D0201
- RoHS Declaration: 1SCC011023D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 1SCC303119D0201
- Data Sheet, Technical Information: 1SCC303008C0201
- Instructions and Manuals: 1SCC303011M0201 REVISION FW 2.05
- Mechanical Drawings: OX_30U-250_2X3_B_
- Wiring Diagram: Circuit diagram_OXA_B_.dxf
- Environmental Product Declaration - EPD: 1SCC303126D0201
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC303063M0201 |
| Environmental Product Declaration - EPD | 1SCC303126D0201 |
| Extended Product Lifetime | Product Modularity |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 66.9 % |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011022D0201 |
| RoHS Declaration | 1SCC011023D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC303119D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC303008C0201 |
| Instructions and Manuals | 1SCC303011M0201 REVISION FW 2.05 |
| Mechanical Drawings | OX_30U-250_2X3_B_ |
| 1SCC308233F0001 | |
| 1SCC308232F0001 | |
| 1SCC308169F0001 | |
| 1SCC308168F0001 | |
| 1SCC308331F0001 | |
| 1SCC308330F0001 | |
| Wiring Diagram | Circuit diagram_OXA_B_.dxf |
| Circuit diagram_OXA_B_.pdf | |
| Environmental Product Declaration - EPD | 1SCC303126D0201 |
| Environmental | |
| Degree of Protection | Front IP20 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Dimensions | |
| Product Net Width | 285 mm |
| 11.22 in | |
| Product Net Height | 305 mm |
| 12.01 in | |
| Product Net Depth / Length | 183 mm |
| 7.2 in | |
| Product Net Weight | 12.06 kg |
| 26.59 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 345 mm |
| 13.58 in | |
| Package Level 1 Depth / Length | 445 mm |
| 17.52 in | |
| Package Level 1 Height | 240 mm |
| 9.45 in | |
| Package Level 1 Gross Weight | 12.76 kg |
| 28.13 lb | |
| Package Level 1 EAN | 6417019842714 |
| Technical | |
| Controller Type | Level 3 (LCD) |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 100 A |
| Degree of Protection | Front IP20 |
| Handle Type | Direct mounted handle |
| Number of Poles | 2P |
| Position of Line Terminals | Supplies on Bottom - Load on Top |
| Power Loss | at Rated Operating Conditions per Pole 1.41 W |
| Rated Frequency (f) | Main Circuit 50-60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | Main Circuit 200...240 V AC |
| Special Functions | Open style |
| Standards | UL1008 |
| Terminal Type | Bolt |
| Transition Type | Open |
| Technical UL/CSA | |
| Ampere Rating | 200-240V 100 A |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC303064D2701 |
| EU Data Act Compliance Declaration | 9AKK108471A5903 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
