> ABB > Manual Switches > 152736

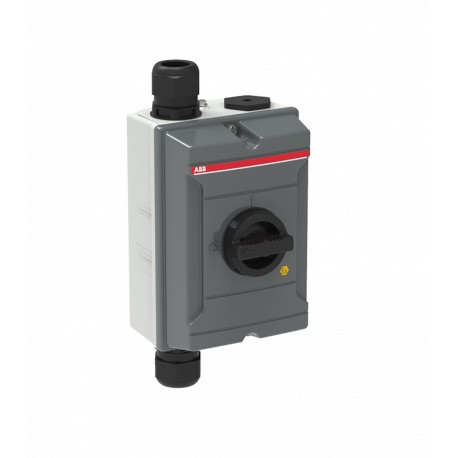

ABB 1SCA152736R1001 1SCA152736R1001 ABB Int. ATEX OTA63S4BX box disconnector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA152736R1001 ABB Int. ATEX OTA63S4BX box disconnector

1SCA152736R1001

152736

ABB

1 Pcs.

Int. ATEX OTA63S4BX box disconnector OTA63S4BX ATEX EMC Safety switch

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC340076D0201
RoHS Declaration1SCC340075D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC340095D0201
Popular Downloads
Data Sheet, Technical Information1SCC340015C0201
Instructions and Manuals1SCC340166M0205
Mechanical DrawingsOTFK2231614RM40.stp
Environmental
Degree of Protectionacc. to IEC 60529 IP65
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85363030
Last Ordering Date2026-08-31 All Countries
Replacement Product ID (NEW)OTA63GS4BX
Country or Territory of OriginBulgaria
Dimensions
Product Net Width160 mm
Product Net Height230 mm
Product Net Depth / Length118 mm
Product Net Weight2.15 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width170 mm
Package Level 1 Depth / Length240 mm
Package Level 1 Height150 mm
Package Level 1 Gross Weight2.15 kg
Package Level 1 EAN6417019839349
Technical
Cable Cross-Section1.5 ... 35 mm²
Cable Entry PositionTop and/or Bottom
Cable Outlets Per Side2xM40 / 2xM40+M16
Connecting Capacity Main CircuitScrew Clamp 1.5 ... 35 mm²
Screw Clamp / PE Terminal 1pc,6 ... 35 mm²
Conventional Thermal Current (Ithe)Fully Enclosed 63 A
Degree of Protectionacc. to IEC 60529 IP65
Enclosure MaterialAluminium
Enclosure TypeFrontex2
Handle ColorBlack
Handle TypeRound handle
Impact Resistance RatingHousing IK08
Maximum Mounted Auxiliary Contacts2 NO, 2 NC
Mechanical Durability20000
Mounted Auxiliary Contacts1 NO, 0 NC
Neutral TypeSwitchable Neutral
Number of Auxiliary Contacts NC0
Number of Auxiliary Contacts NO1
Number of Poles4P
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out
Power Lossat Rated Operating Conditions per Pole 2.8 W
Rated Conditional Short-Circuit Current (Inc)13 kA
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 750 V
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 63 A
(500 V) 63 A
(690 V) 63 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 63 A
(500 V) 45 A
(690 V) 20 A
Rated Operational Power AC-23A (Pe)(380 ... 415 V) 22 kW
(500 V) 22 kW
(690 V) 15 kW
Rated Operational VoltageMain Circuit 750 V
Rated Short-Circuit Making Capacity (Icm)(690 V) 1.4 kA
Recommended Screw DriverMain Circuit Pozidriv 2
Special FunctionsEMC
StandardsIEC 60947-1, -3
Terminal TypeScrew Terminals
Tightening TorqueMain Circuit 2 N·m
Wire Stripping Length13 mm
Technical UL/CSA
Wire Stripping Length13 mm
Recommended Screw DriverMain Circuit Pozidriv 2
Tightening TorqueMain Circuit 2 N·m
Certificates and Declarations
ATEX Certificate1SCC340068D0201
Declaration of Conformity - CE1SCC340067D2701
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122205
IDEA Granular Category Code (IGCC)5166 >> Safety switch
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)3640485
